- Number of axes : 7
- Number of spindles : 2

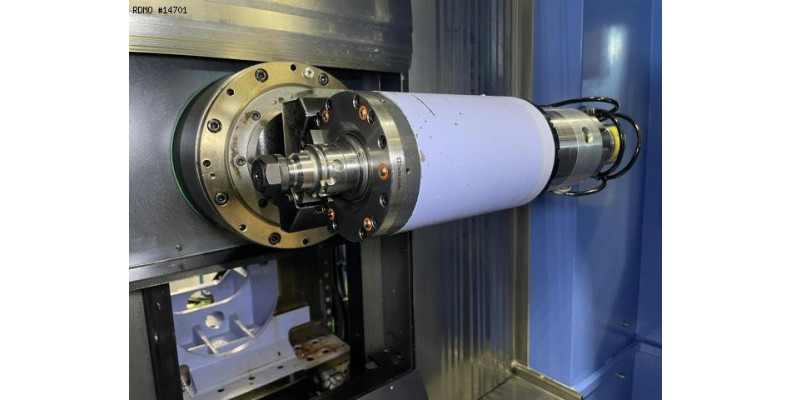

MAIN SPINDLE
- Spindle power : 15 [kW]
- Spindle speeds : 5500 [rpm]
- Max. bar diameter : 42 [mm]
- C axis indexing precision : 0.001 [°]
COUNTER-SPINDLE
- Spindle power : 15 [kW]
- Spindle speeds : 5500 [rpm]
- Max. bar diameter : 42 [mm]
- C axis indexing precision : 0.001 [°]
- Travel : 330 [mm]
TURNING-MILLING SPINDLE
- X/Z stroke : 410/400 [mm]
- Y stroke : 200 [mm]
- B Axis stroke : -25/+115 [°]
- B axis indexing precision : 0.001 [°]
- Tool type : HSK40
- Spindle speeds : 30000 [rpm]
- Spindle power : 8 [kW]
TOOL CHANGER
- Auto. Tool Changer type : Parapluie
- Tool magazine capacity : 60
- Tool exchange time : 1.2 [sec]
- Number of positions : 60
POWER SUPPLY
- Supply voltage : 400 [V]
WEIGHT & DIMENSIONS
- Machine floor space : 3300 x 2900 [mm]
- Machine height : 2100 [mm]
- Machine weight : 5000 [kg]
MACHINE HOURS
- Number of working hours : 11659 [h]
Equipment
- CNC : Fanuc 31i model A5
- Linear scales
- Coolant tank
* with high-pressure pump : 70 [bars]
* Coolant through spindle
- Oil mist extractor : ELBARON RON/A 100 DV
- Spindle cooling unit
- Workpiece probe : Renishaw OMP40-2
- Parts catcher
- 1 NAKANISHI HTS1501S spindle : 150.000 [rpm]
- Fire extinguisher *
* NB : working order not guaranteed. To have it checked by a qualified organization of the buyer.
- Bar puller
