- Number of spindles : 6
- Max. bar diameter : 32 [mm]
- Spindle speed : 6300 [rpm]
- slide unity 1.1 : X and Z axes controlled by CNC
- slide unity 1.2 : fixed X axis, Z axis controlled by CNC
- slide unity 2.1 : X and Z axes controlled by CNC
- slide unity 2.2 : X and Z axes controlled by CNC
- slide unity 3.1 : X and Z axes controlled by CNC
- slide unity 3.2 : X and Z axes controlled by CNC
- slide unity 4.1 : X and Z axes controlled by CNC
- slide unity 4.2 : fixed X axis, Z axis controlled by CNC
- slide unity 5.1 : X and Z axes controlled by CNC
- slide unity 5.2 : X and Z axes controlled by CNC
- slide unity 6.1 : X and Z axes controlled by CNC
- slide unity 6.2 : X and Z axes controlled by CNC
- synchronous unit, spindle position 6.1
Equipment
- CN SIEMENS 840D
- Counter spindle

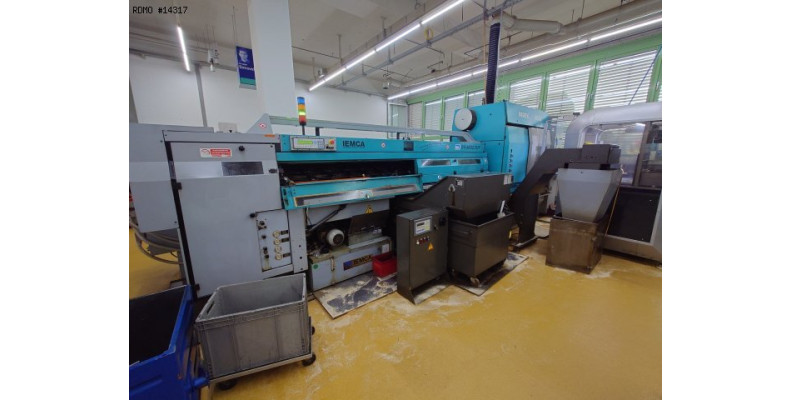

- Bar loader : IEMCA SIR MS32/33 P
- coolant tank KNOLL
* with high-pressure pump
- chip conveyor KNOLL
- Parts catcher
- Ejection of workpiece
- Fire extinguisher : KRAFT UND BAUER
* NB : working order not guaranteed. To have it checked by a qualified organization of the buyer
