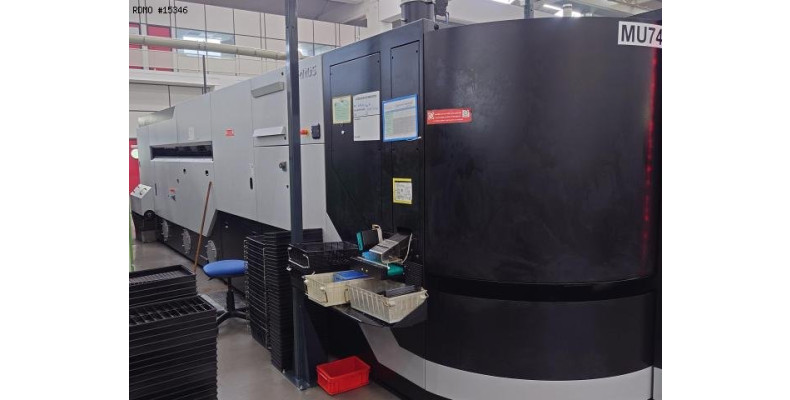

TORNOS MULTISWISS 8x26

Name: Cnc multispindle lathe TORNOS MULTISWISS 8x26
Brand: TORNOS
Availability: InStock

Turning Cnc multispindle lathe

15346

PDF datasheet to download:

Brand: TORNOS

Model: MULTISWISS 8x26

Year: 2017

Serial: 13637

15346

TORNOS MULTISWISS 8x26

Turning Cnc multispindle lathe

PDF datasheet to download:

Brand: TORNOS

Model: MULTISWISS 8x26

Year: 2017

Serial: 13637

Ask Price

Caracteristics

- Number of axes : 26
- Number of spindles : 8
- Number of counter-spindles : 1
SPINDLES
- Max. bar diameter : 26 [mm]
- Spindle speeds : 8000 [rpm]
- Spindle power : 11 [kW]
- Max. part length : 65 [mm]
- Z stroke : 75 [mm]
COUNTER-SPINDLE
- Max. bar diameter : 26 [mm]
- Spindle speeds : 8000 [rpm]
- Spindle power : 11 [kW]
- Z stroke : 150 [mm]
POWER SUPPLY
- Supply voltage : 400 [V]
- Total installed power : 140 [kW]
WEIGHT & DIMENSIONS
- Machine floor space : 9.000 x 2.480 [mm]
- Machine height : 2.270 [mm]
- Machine weight : 15000 [kg]
MACHINE HOURS
- Number of hours under power : 42227 [h]
- Number of working hours : 19154 [h]

Equipment

- CNC : Fanuc 30i
- 3 colors status lamp

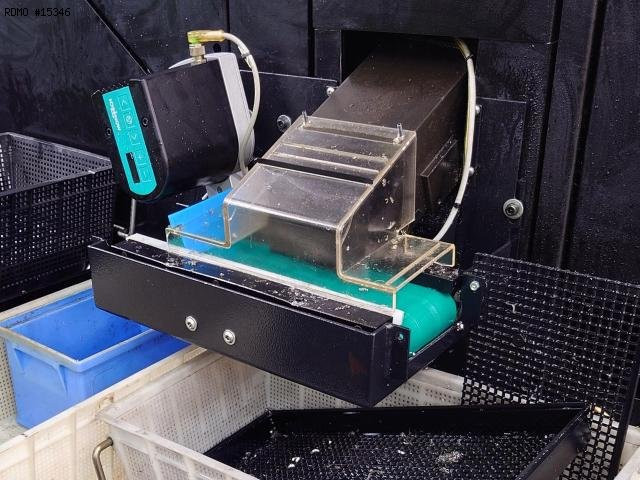

- Parts catcher
- Ejection of workpiece
- Parts conveying strip
- Chips conveyor
- Coolant tank
* with high-pressure pump : 80 [bars]
- Bar loader : intégré
* Bar length : 3000 [mm]

PDF datasheet to download:
