- Number of axes : 10
- Number of spindles : 2
- Number of turrets : 2
MAIN SPINDLE
- Spindle nose : A2-5
- Spindle power : 11 [kW]
- Spindle speeds : 7000 [rpm]
- Max. bar diameter : 36 [mm]
- Max. chuck diameter : 100 [mm]
- C axis indexing precision : 0.001 [°]
COUNTER-SPINDLE
- Spindle nose : A2-5
- Spindle power : 11 [kW]
- Spindle speeds : 7000 [rpm]
- Max. bar diameter : 36 [mm]
- Max. turning diameter : 100 [mm]
- C axis indexing precision : 0.001 [°]
- Travel : 340 [mm]
TURRET 1
- Number of positions : 12
- Number of motorized positions : 12
- X/Z stroke : 85/300 [mm]
- Y stroke : -25/+25 [mm]
- Live tools speed : 6000 [rpm]
- Live tools power : 4.6 [kW]

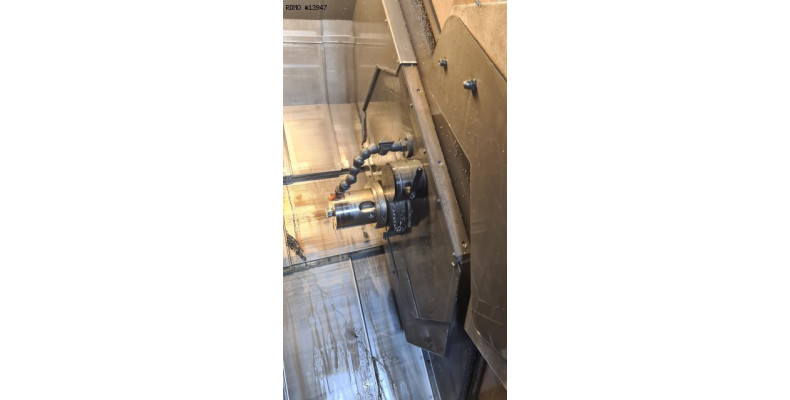

TURRET 2
- Number of positions : 12
- Number of motorized positions : 12
- X/Z stroke : 35/300 [mm]
- Y stroke : -25/+25 [mm]
- Live tools speed : 6000 [rpm]
- Live tools power : 4.6 [kW]
POWER SUPPLY
- Supply voltage : 400 [V]
WEIGHT & DIMENSIONS
- Machine floor space : 3682 x 1430 [mm]
- Machine height : 1900 [mm]
- Machine weight : 5000 [kg]
MACHINE HOURS

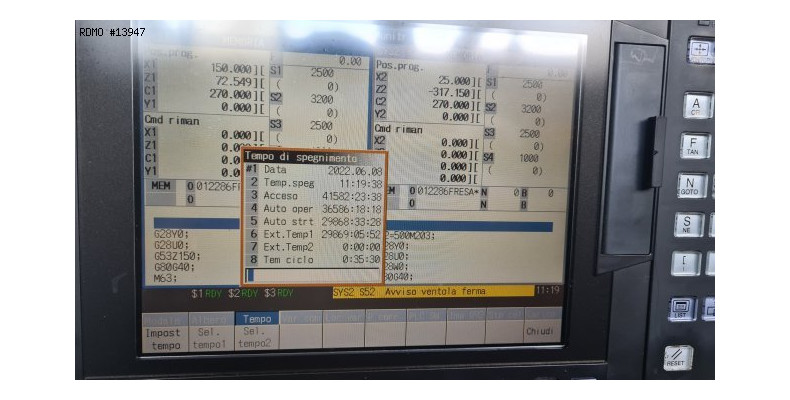

- Number of working hours : 36500 [h]
Equipment

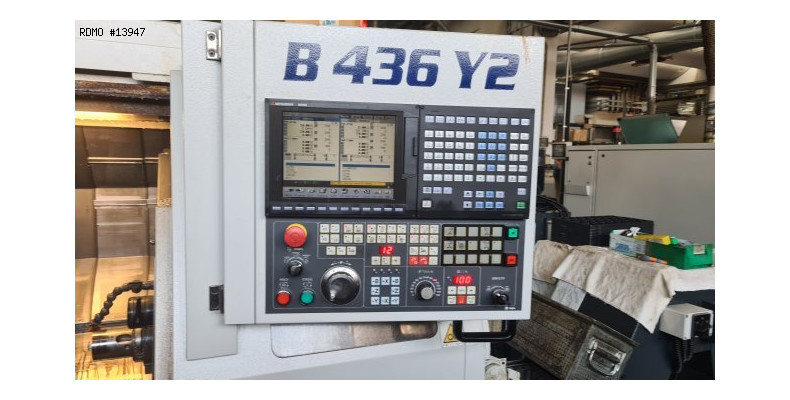

- CNC : Mitsubishi M700

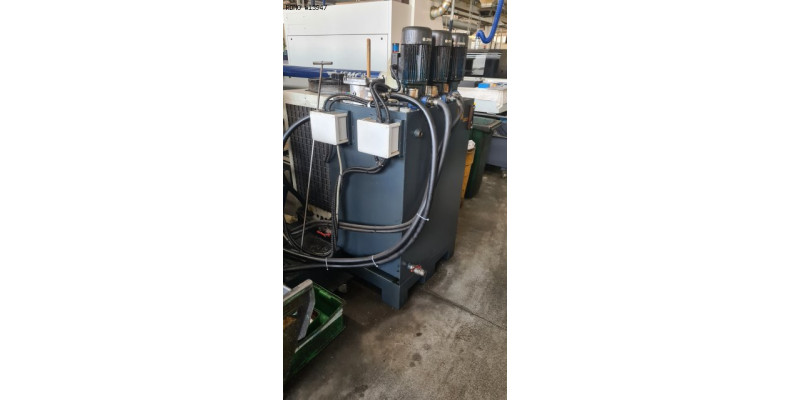

- Coolant tank
* with high-pressure pump : 30 [bars]

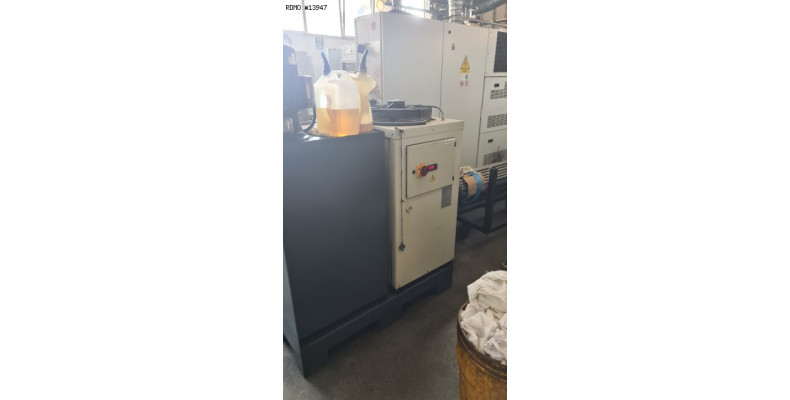

* with cooling unit for coolant
* Coolant through spindle

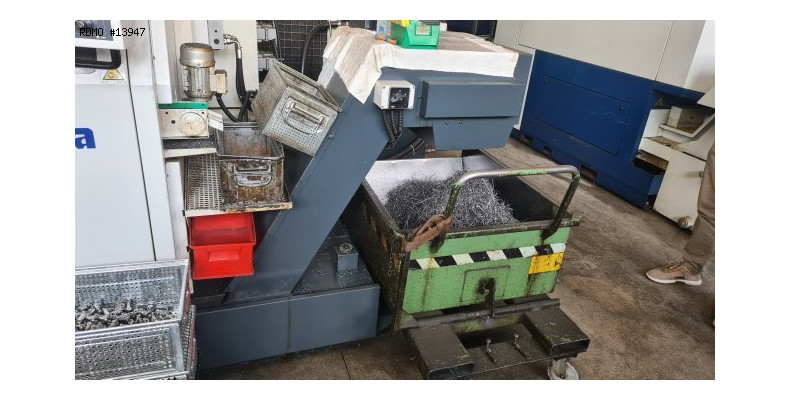

- Chips conveyor
- Pressurized spindle and counter spindle
- Tool probe : MARPOSS
- Parts catcher

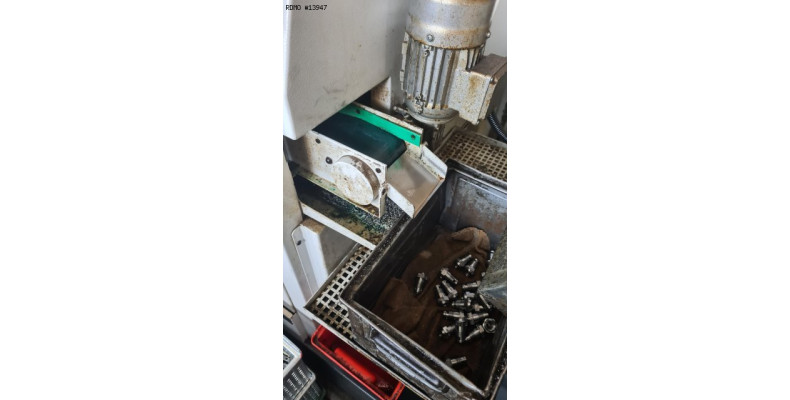

- Parts conveying strip

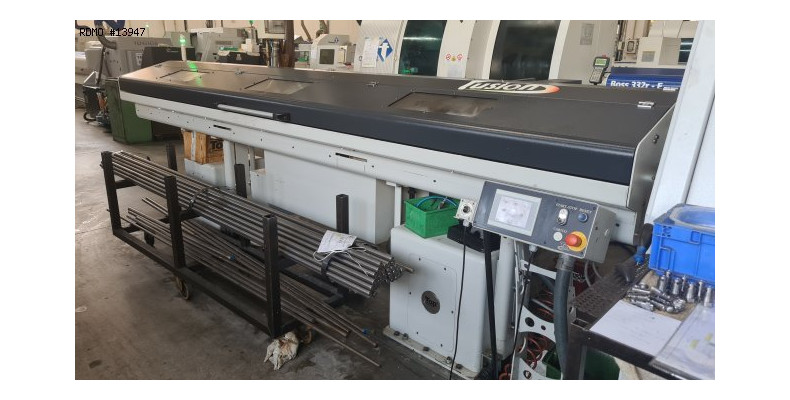

- Bar loader : TOP Fusion
- Electric transformer
- Number of turning tool holders : 3
- Number of fixed tool holders : 21
- Collet chuck : x2 Bellegrandi
This machine tool is sold. We offer equivalent models at the bottom of page.
