RIELLO SISTEMI TFL400-19/15CDLR6-4MR80R2/10-V 34 axis

Transferring Cnc horizontal transfer machine

14948

PDF datasheet to download:

Brand: RIELLO SISTEMI

Model: TFL400-19/15CDLR6-4MR80R2/10-V

Year: 2017

Serial: 21.900.000

14948

RIELLO SISTEMI TFL400-19/15CDLR6-4MR80R2/10-V 34 axis

Transferring Cnc horizontal transfer machine

PDF datasheet to download:

Brand: RIELLO SISTEMI

Model: TFL400-19/15CDLR6-4MR80R2/10-V

Year: 2017

Serial: 21.900.000

Ask Price

Caracteristics

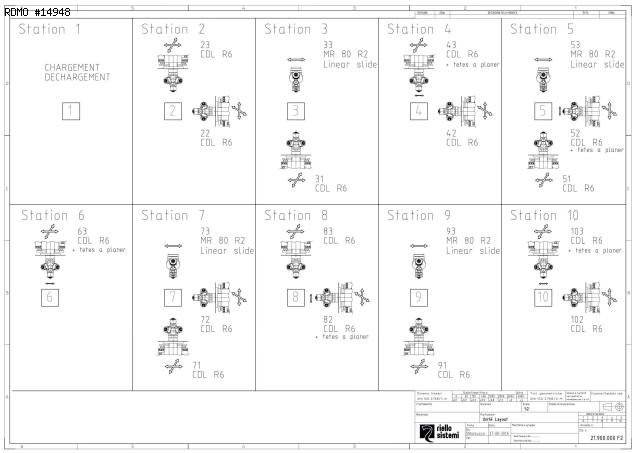

- Number of axes : 34
- Number of posts : 10
- Number of machining stations : 9
- Number of horizontal units : 6
- Number of vertical units : 13
MACHINING UNIT
- Designation : CDL R6
- Number of units : 9
- Position : 2-3-4-5-6-7-8-9-10
- X/Y stroke : +100/-100 [mm]
- Designation : MR 80 R2
- Number of units : 4
- Position : 3-5-7-9
- Y stroke : +100/-50 [mm]
POWER SUPPLY
- Supply voltage : 400 [V]
- Total installed power : 10 [kVA]
WEIGHT & DIMENSIONS
- Machine floor space : 15301 [mm]
- Machine height : 4896 [mm]

Equipment

- CNC : RIELLO
- Cooling unit
- Coolant tank
* with high-pressure pump
* with cooling unit for coolant
- Chips conveyor
- Workpiece loading / unloading robot
- Oil mist extractor
