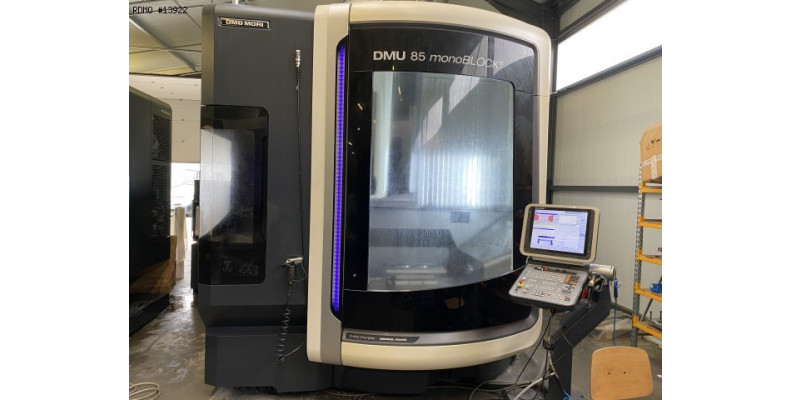

DMG MORI DMU 85 MONOBLOCK 5 axis

Milling Vertical machining center

13922

Brand: DMG MORI

Model: DMU 85 MONOBLOCK

Year: 2017

Serial: 12160011623

13922

DMG MORI DMU 85 MONOBLOCK 5 axis

Milling Vertical machining center

Brand: DMG MORI

Model: DMU 85 MONOBLOCK

Year: 2017

Serial: 12160011623

Ask Price

Caracteristics

- Number of axes : 5
MILLING SPINDLE
- Tool holder type : HSK 100
- Spindle power : 52 [kW]
- Spindle speeds : 12 000 [rpm]
- Number of spindle hours : 9200 [h]
LINEAR AXES
- Travels on X/Y/Z axes : 935/850/650 [mm]
- Rapid traverses rates (X/Y/Z) : 40 000 [mm/min]
- Cutting feed rates (X/Y/Z) : 40 000 [mm/min]
A ROTARY AXIS
- Rapid traverse rate : 15 [rpm]
B ROTARY AXIS
- Rapid traverse rate : 40 [mm/min]
TOOL CHANGER
- Auto. Tool Changer type : Loading arm
- Tool magazine capacity : 60

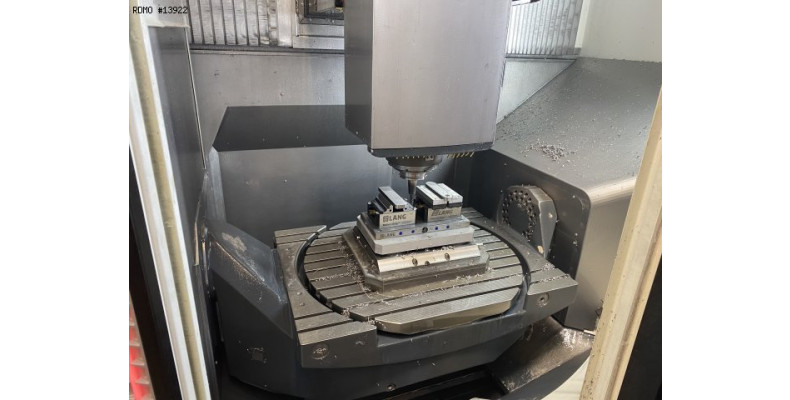

TABLE
- Table dimensions : Ø850 x 750 sur 1000 x 750 [mm]
- Maximum weight upon table : 1500 [kg]
WEIGHT & DIMENSIONS
- Machine floor space : 12.5 [m2]
- Machine height : 3 205 [mm]
- Machine weight : 14 600 [kg]
MACHINE HOURS
- Number of working hours : 9200 [h]

Equipment

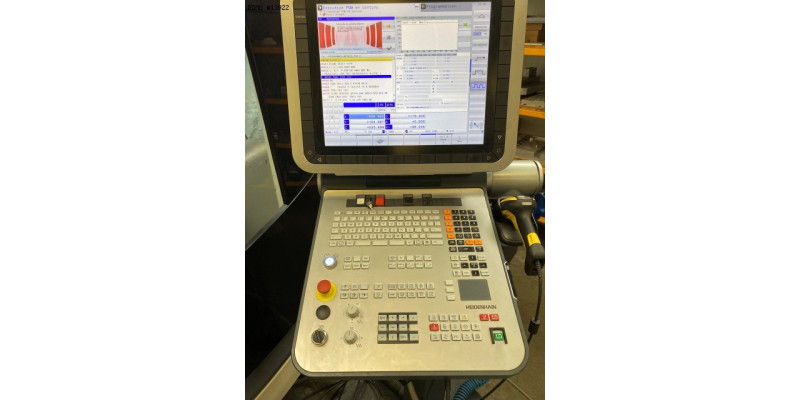

- CNC : Heidenhain TNC640
- Interface : RS232 / USB
- Rigid tapping
- 3 colors status lamp
- COOLANT TANK
* with high-pressure pump : 70 [bars]
* With paper filtering unit
* With cooling unit for coolant
* With washing gun
- Coolant through spindle
- Chips conveyor
- Tool probe : Laser BLUM
- Workpiece probe : Mesure Infrarouge
- Workpiece loading robot : Prédisposition

This machine tool is sold. We offer equivalent models at the bottom of page.
