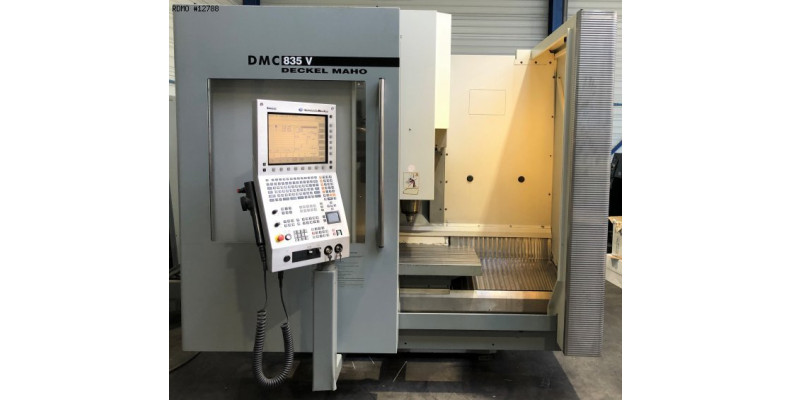

DMG DMC 835 V 3 axis

Milling Vertical machining center

12788

Brand: DMG

Model: DMC 835 V

Year: 2007

Serial: 15415029334

12788

DMG DMC 835 V 3 axis

Milling Vertical machining center

Brand: DMG

Model: DMC 835 V

Year: 2007

Serial: 15415029334

Ask Price

Caracteristics

- Number of axes : 3
MILLING SPINDLE
- Tool holder type : ISO40
- Spindle power : 9 [kW]
- Spindle speeds : 10.000 [rpm]
LINEAR AXES
- Travels on X/Y/Z axes : 835 x 510 x 510 [mm]
- Rapid traverses rates (X/Y/Z) : 30.000 [mm/min]
TOOL CHANGER
- Auto. Tool Changer type : Loading arm
- Tool magazine capacity : 20
TABLE
- Table dimensions : 1.000 x 560 [mm]
- Maximum weight upon table : 800 [kg]
POWER SUPPLY
- Supply voltage : 400 [V]
- Total installed power : 20 [kVA]
WEIGHT & DIMENSIONS
- Machine floor space : 2.100 x 2.700 [mm]
- Machine height : 2.700 [mm]
- Machine weight : 4.200 [kg]
MACHINE HOURS
- Number of working hours : 20.864 [h]

Equipment

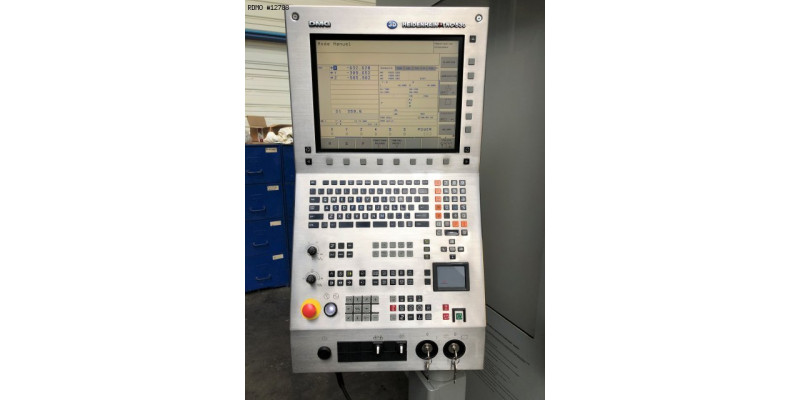

- CNC : Heidenhain iTNC530
- Electronic handwheel
- Linear scales
- Coolant tank
* With washing gun
- Chips conveyor

This machine tool is sold. We offer equivalent models at the bottom of page
