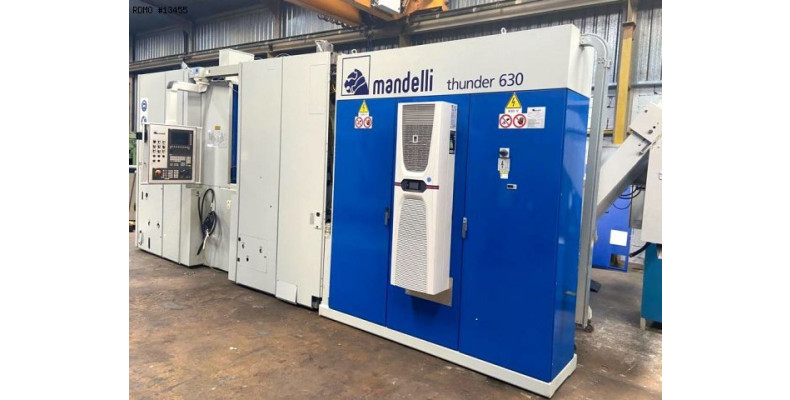

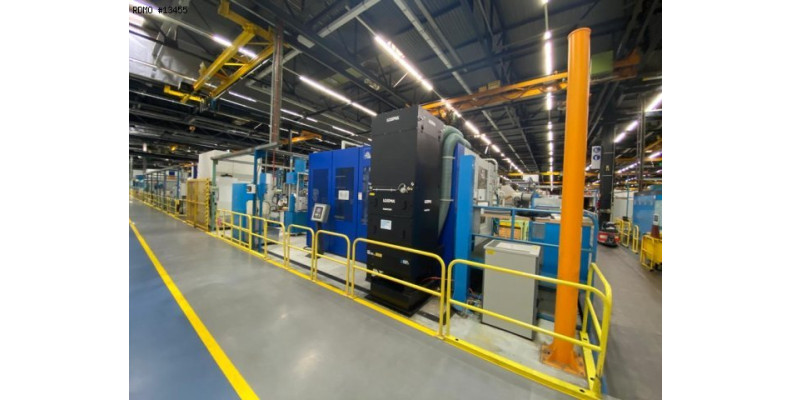

MANDELLI THUNDER 630 4 axis

Milling Horizontal machining center

13455

Brand: MANDELLI

Model: THUNDER 630

Year: 2012

Serial: 013282

13455

MANDELLI THUNDER 630 4 axis

Milling Horizontal machining center

Brand: MANDELLI

Model: THUNDER 630

Year: 2012

Serial: 013282

Ask Price

Caracteristics

- Number of axes : 4
MILLING SPINDLE
- Tool holder type : HSK 100
- Spindle power : 50/63 [kW]
- Spindle speeds : 20 - 8.000 [rpm]
LINEAR AXES
- Travels on X/Y/Z axes : 1.000 x 850 x 850 [mm]
- Rapid traverses rates (X/Y/Z) : 50 [m/min]
- Cutting feed rates (X/Y/Z) : 20 [m/min]
TOOL CHANGER
- Tool magazine capacity : 110

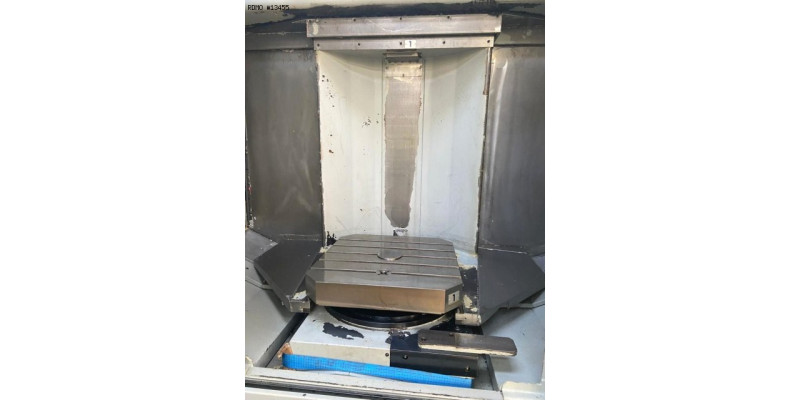

PALLET CHANGER
- Pallet exchange time : 15 [sec]
- Pallet size : 630 x 630 [mm]
- Maximum workpiece diameter : 1.100 [mm]
- Maximum workpiece height : 950 [mm]
- Maximum weight upon pallet : 1000 [kg]
- Distance table / spindle axis (min./max.) : 80 - 930 [mm]
- Distance table center / spindle nose (min./max.) : 140 - 990 [mm]
POWER SUPPLY
- Supply voltage : 400 [V]
- Total installed power : 145 [kVA]
WEIGHT & DIMENSIONS
- Machine floor space : 7.030 x 3.350 [mm]
- Machine height : 3.390 [mm]
- Machine weight : 28.600 [kg]

Equipment

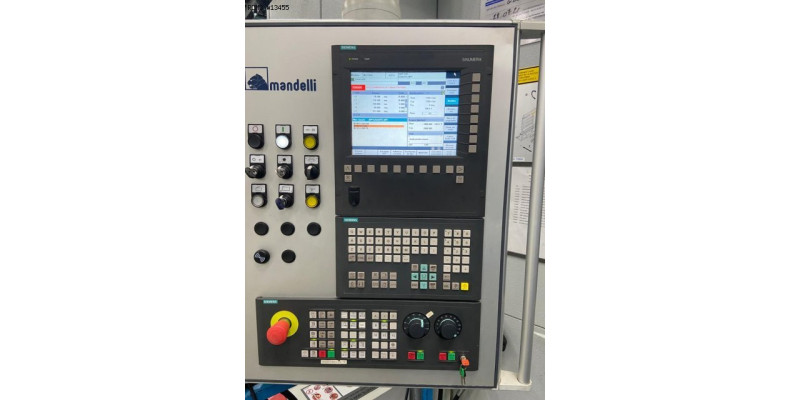

- CNC : SIEMENS 840D

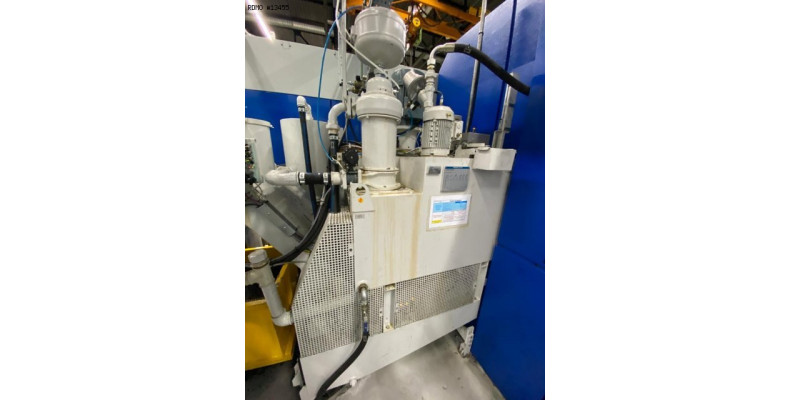

- Coolant tank : 1.100 [l]
* with high-pressure pump : 25 [bars]
* Coolant through spindle

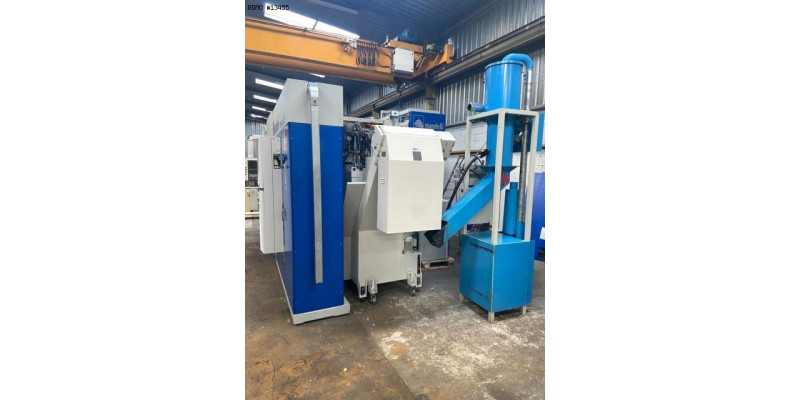

- Chips conveyor : KNOLL
- Oil mist extractor

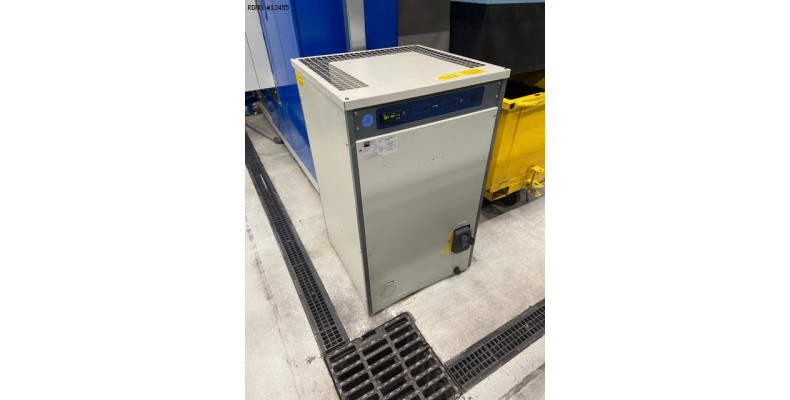

- Spindle cooling unit

This machine tool is sold. We offer equivalent models at the bottom of page.
