QUASER HX404BP/15C 4 axis

Milling Horizontal machining center

PDF datasheet to download:

Brand: QUASER

Model: HX404BP/15C

Year: 2016

Serial: 443B160004

Ask Price

Caracteristics

- Number of axes : 4

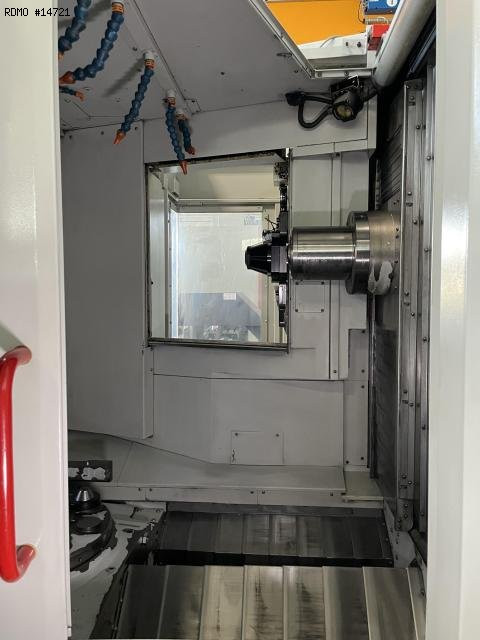

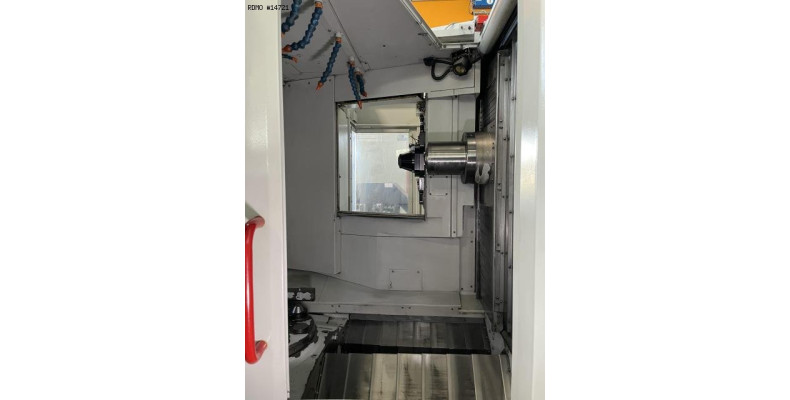

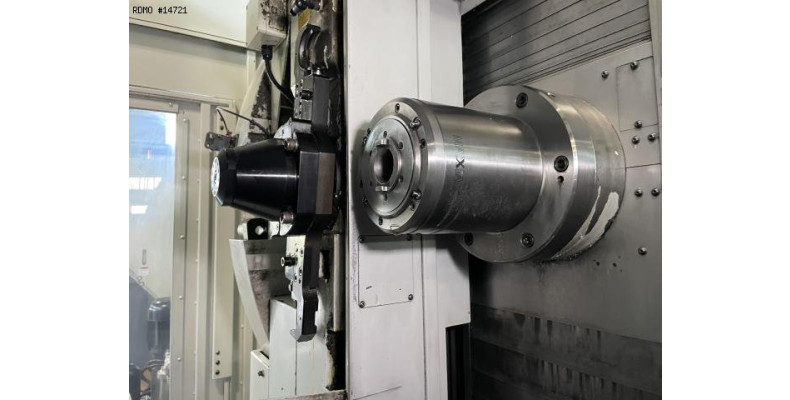

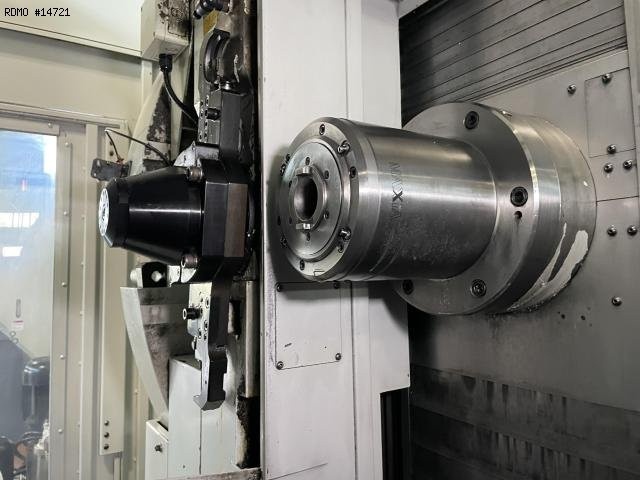

MILLING SPINDLE
- Tool holder type : BT40 BIG PLUS
- Spindle power : 26 [kW]
- Spindle speeds : 15000 [rpm]
LINEAR AXES
- Travels on X/Y/Z axes : 560/640/640 [mm]
- Rapid traverses rates (X/Y/Z) : 60 [m/min]
B ROTARY AXIS
- Travel : 360 [°]
- Indexing precision : 0.001 [°]

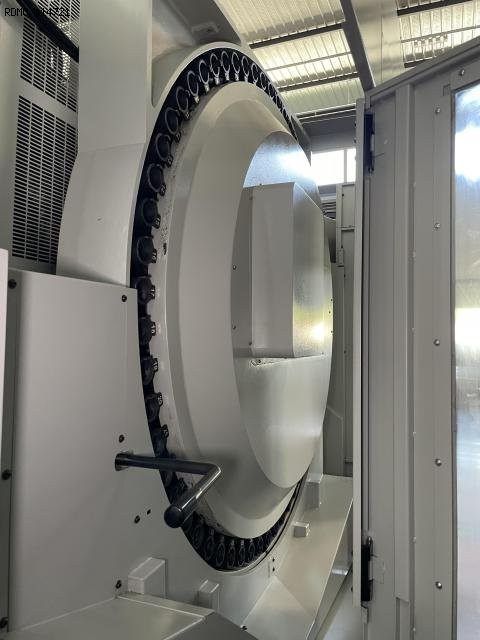

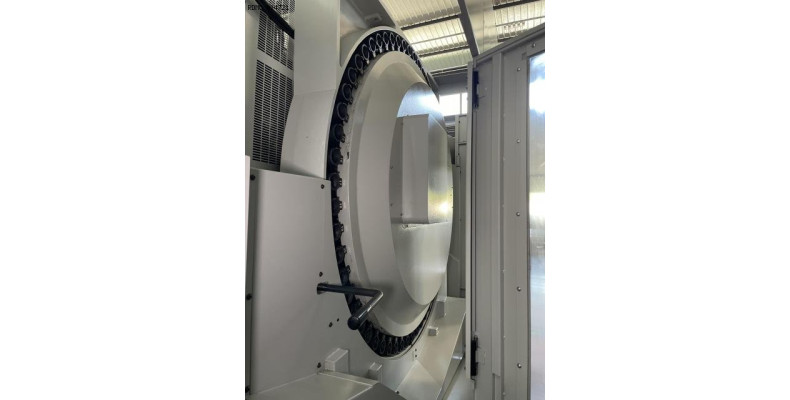

TOOL CHANGER
- Auto. Tool Changer type : Bras chargeur
- Tool magazine capacity : 60

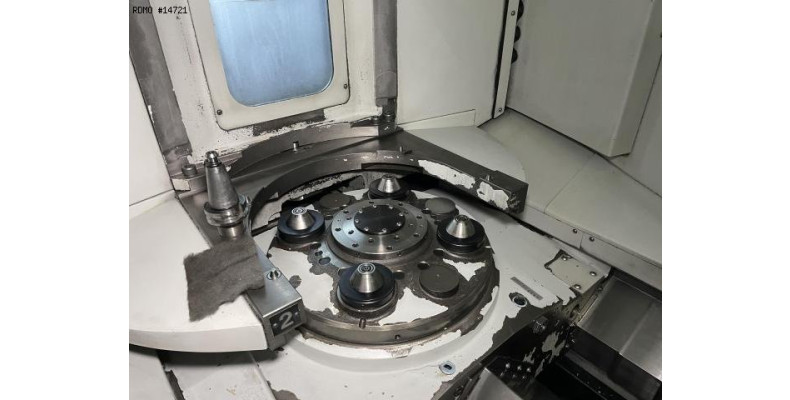

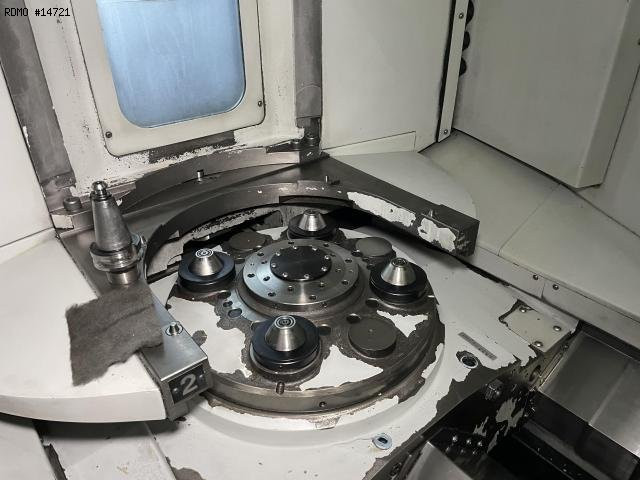

PALLET CHANGER
- Pallet changing device type : Rotopalette
- Pallet size : 400X400 [mm]
- Pallets number : 2
- Maximum weight upon pallet : 400 [kg]
- Maximum workpiece diameter : 630 [mm]
- Maximum workpiece height : 900 [mm]
POWER SUPPLY
- Supply voltage : 400 [V]
WEIGHT & DIMENSIONS
- Machine floor space : 4100X2300 [mm]
- Machine height : 2720 [mm]
- Machine weight : 11000 [kg]
MACHINE HOURS

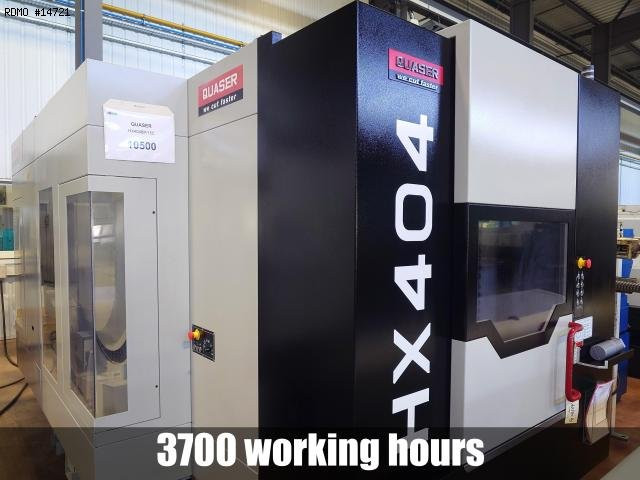

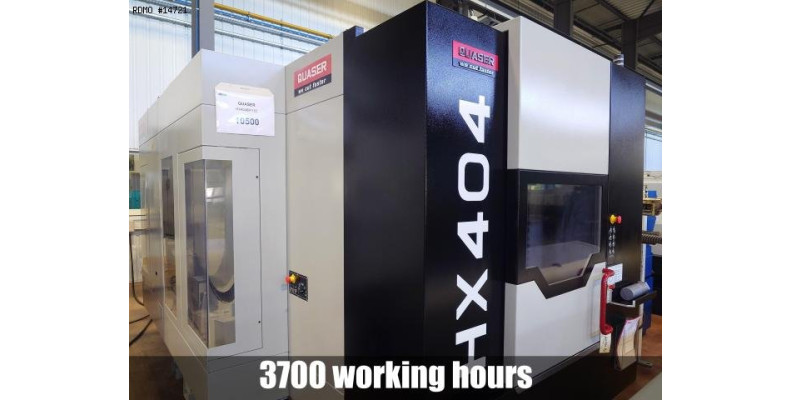

- Number of working hours : 3700 [h]

Equipment

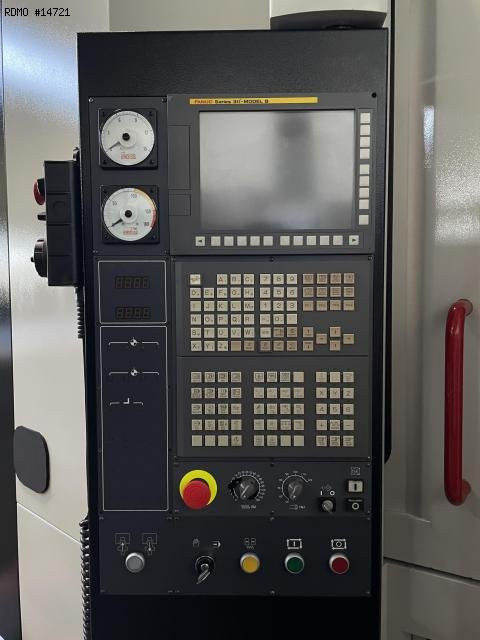

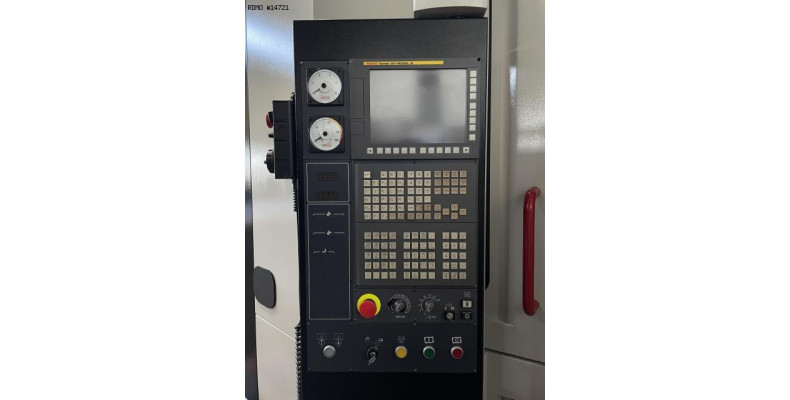

- CNC : Fanuc 31 iB
Interface : Ethernet / RS232 / USB / PCMCIA
- Electronic handwheel
- Linear scales
- Rigid tapping
- 3 colors status lamp

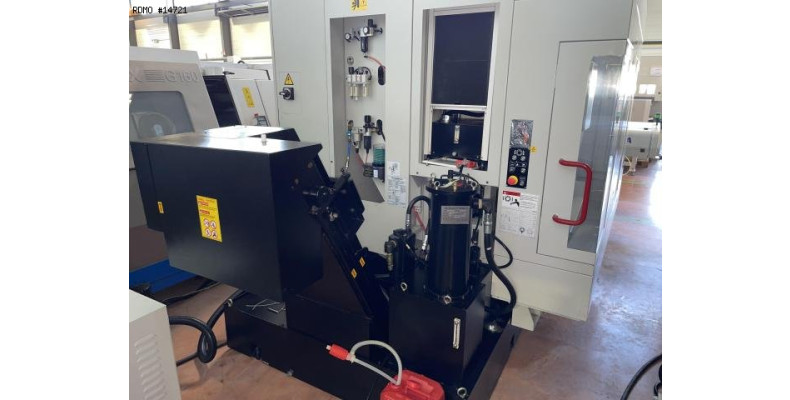

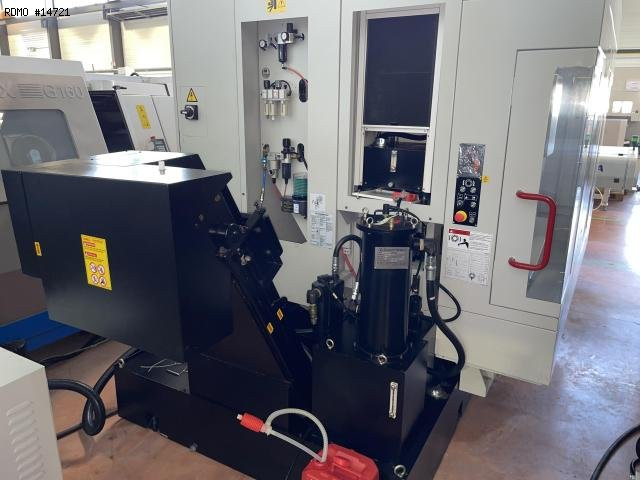

- Coolant tank
* with high-pressure pump : 25 [bars]
* Coolant through spindle
* With cabin washing
- Chips conveyor : Arrière
- Spindle cooling unit
- Tool probe
- Workpiece probe : Renishaw OMP60
