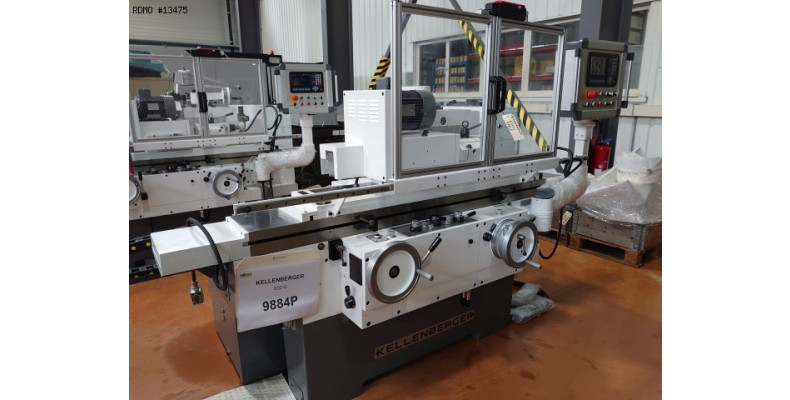

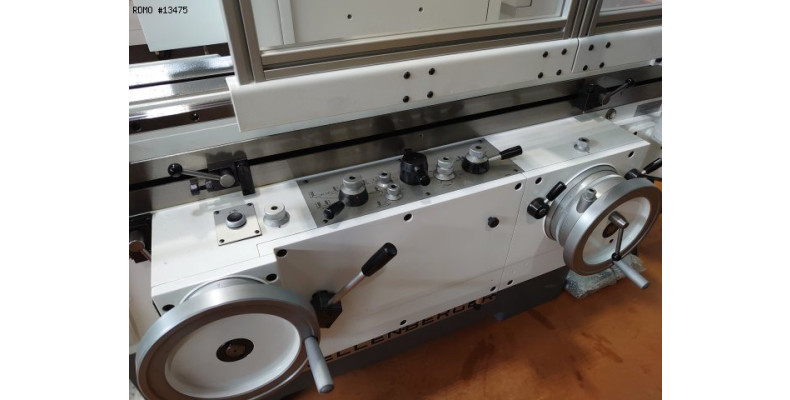

KELLENBERGER 600 U

Grinding / sharpening / lapping / deburring / polishing Cylindrical grinder

13475

PDF datasheet to download:

Brand: KELLENBERGER

Model: 600 U

Year:

Serial: 32.466.2902

13475

KELLENBERGER 600 U

Grinding / sharpening / lapping / deburring / polishing Cylindrical grinder

PDF datasheet to download:

Brand: KELLENBERGER

Model: 600 U

Year:

Serial: 32.466.2902

Ask Price

Caracteristics

- distance between centers : 600 [mm]
- center's height : 175 [mm]
- table orientation : 11 [°]

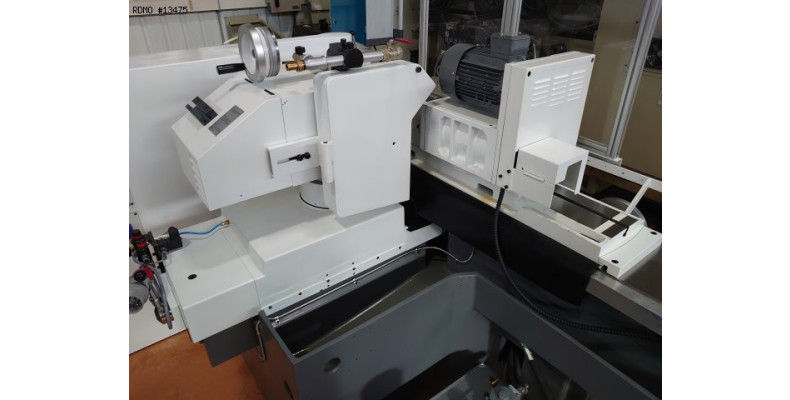

UNIVERSAL GRINDING WHEEL HOLDER HEADSTOCK
- left grinding wheel dimension : 400 x 50 x 127 [mm]
- right grinding wheel dimension : 225 x 20 x 76,2 [mm]
- motor power : 3 [kW]
- spindle speed : 1500 / 1700 / 2200
- grinding-wheel holder headstock orientation : 270 [°]

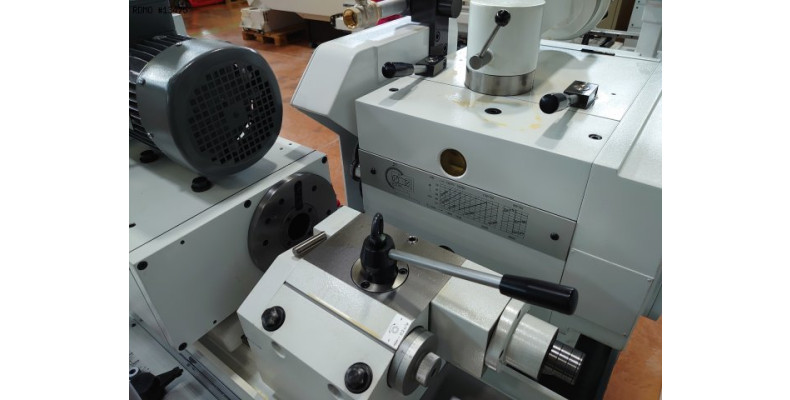

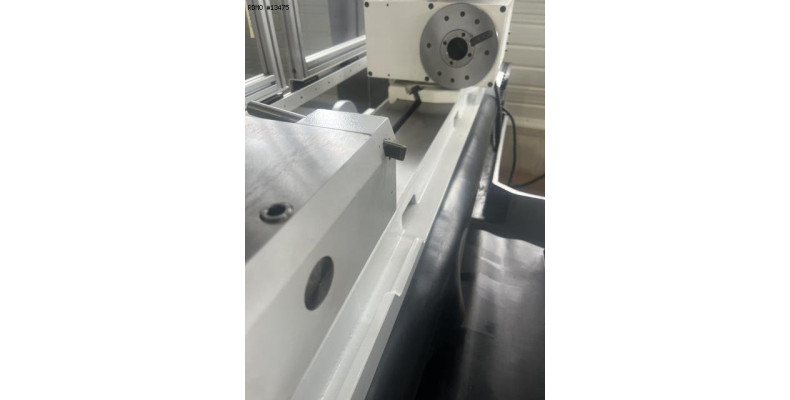

PART HOLDER HEADSTOCK
- part-holder headstock orientation : 360 [°]
- spindle speeds : 20 - 400 [Rpm]
- internal taper : Morse 5
- motor power : 0,9 [kW]

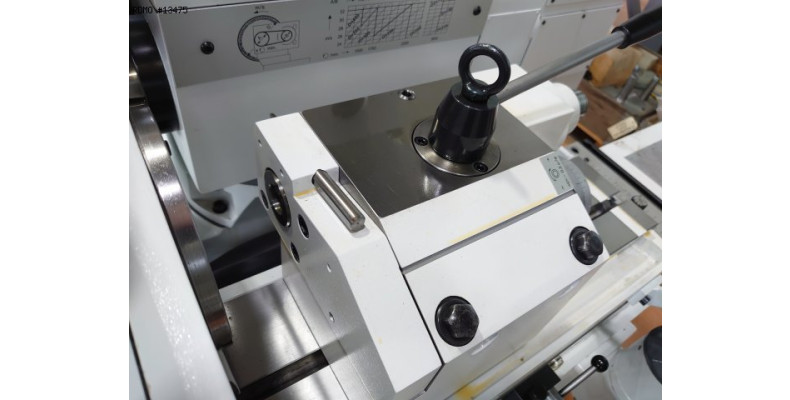

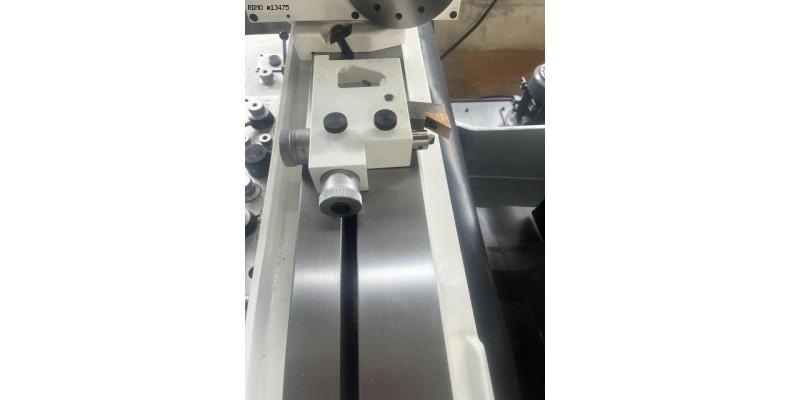

TAIL STOCK
- internal taper : CM4
- quill stroke : 30 [mm]
DIMENSIONS
- floor surface : 2580 x 1680 [mm]
- height : 1670 [mm]
- weight : 2200 [kg]

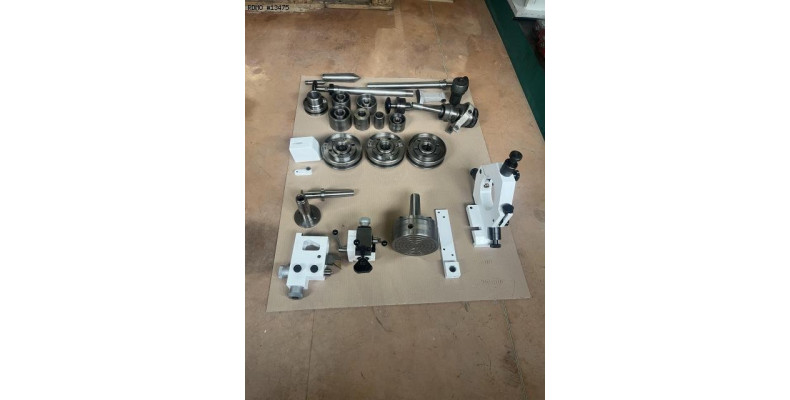

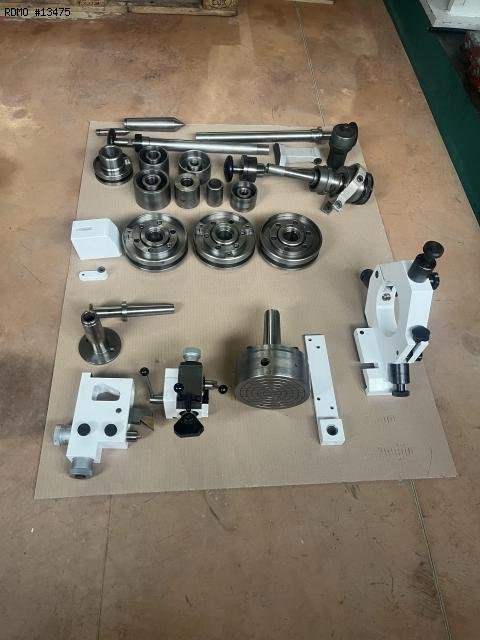

Equipment

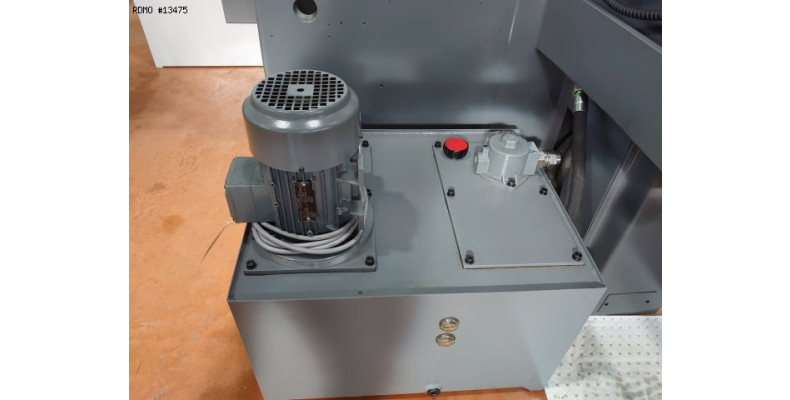

- lubrication tank with pump

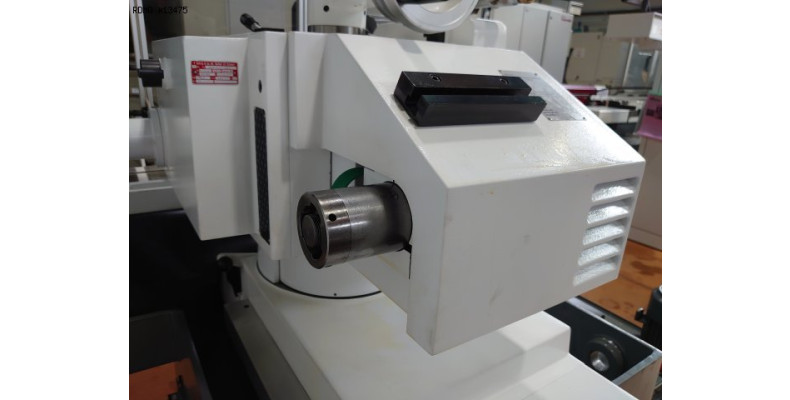

- FISCHER internal spindle
