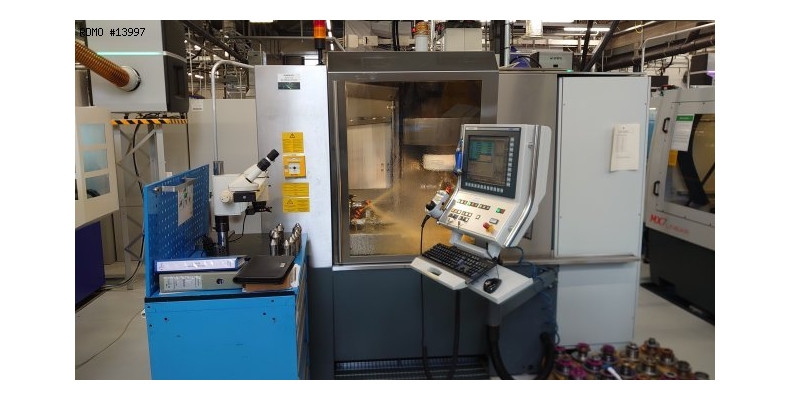

EWAG ROTOLINE 6 axis

Grinding / sharpening / lapping / deburring / polishing Cnc sharpening machine

13997

PDF datasheet to download:

Brand: EWAG

Model: ROTOLINE

Year: 2007

Serial: 1900704'052

13997

EWAG ROTOLINE 6 axis

Grinding / sharpening / lapping / deburring / polishing Cnc sharpening machine

PDF datasheet to download:

Brand: EWAG

Model: ROTOLINE

Year: 2007

Serial: 1900704'052

Ask Price

Caracteristics

- Axis X transversal stroke : 460 [mm]
- Axis X quick feed speed : 10 [m/min]
- Axis X resolution : 0.0001 [°]
- Axis Y vertical stroke : 190 [mm]
- Axis Y quick feed speeds : 6 [m/min]
- Axis Y resolution : 0.0001 [°]
- Axis Z stroke : 730 [mm]
- Axis Z quick feed speeds : 6 [m/min]
- Axis Z resolution : 0.0001 [°]
- Axis rest W1 : 730 [mm]
- Axis W1 quick feed speeds : 7.5 [m/min]
- Axis Z resolution : 0.0001 [°]
- Swiveling axis B stroke : +/- 200 [°]
- Axis B quick feed speeds : 21600 [°/min]
- Axis B resolution : 0.0001 [°]
- Axis C (divider) : 360 [°]
- Axis C resolution : 0.0001 [°]
- Attachment taper : ISO 50
SPINDLE
- Spindle power : 9 [KW]
- Spindle speed : 9000 [Rpm]
HOURS
- Working hours : 7800
FLOOR SPACE
- Machine weight : 3.700 [kg]

Equipment

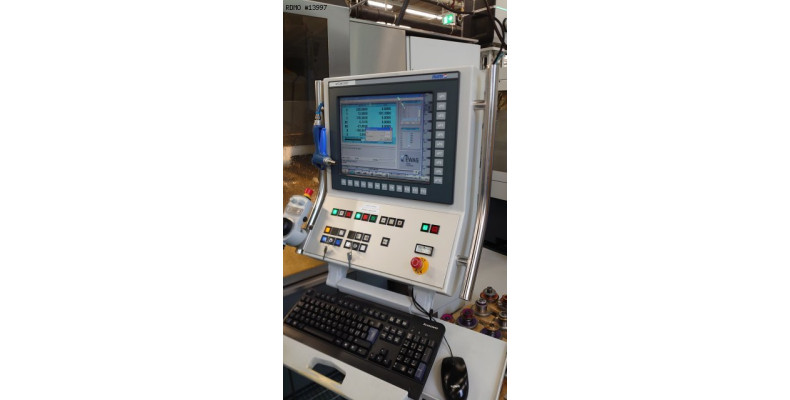

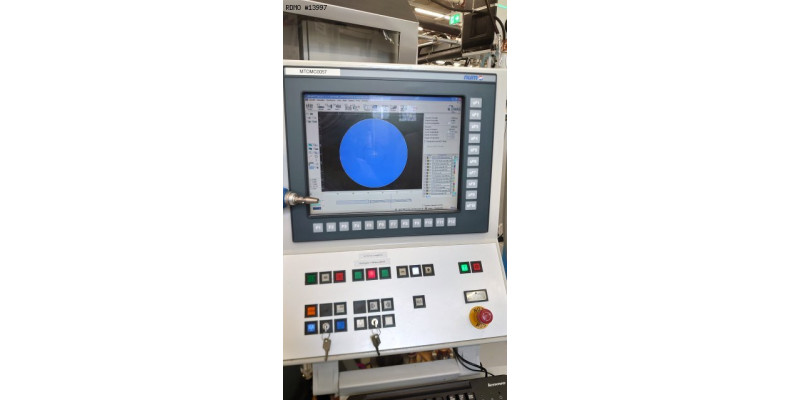

- CNC Num Control
- NUMROTOplus 2.9 software

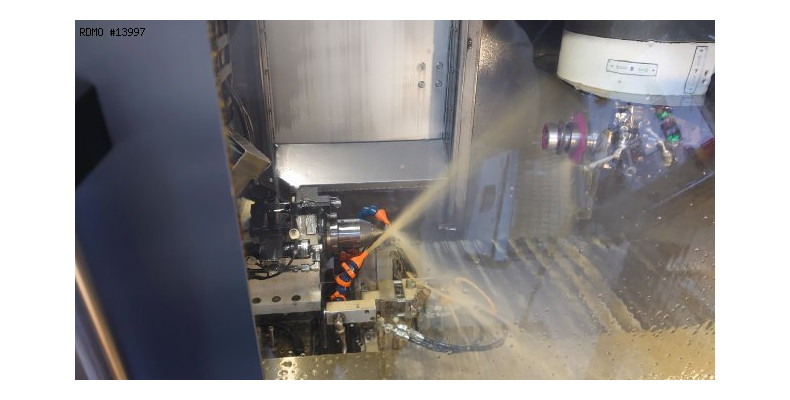

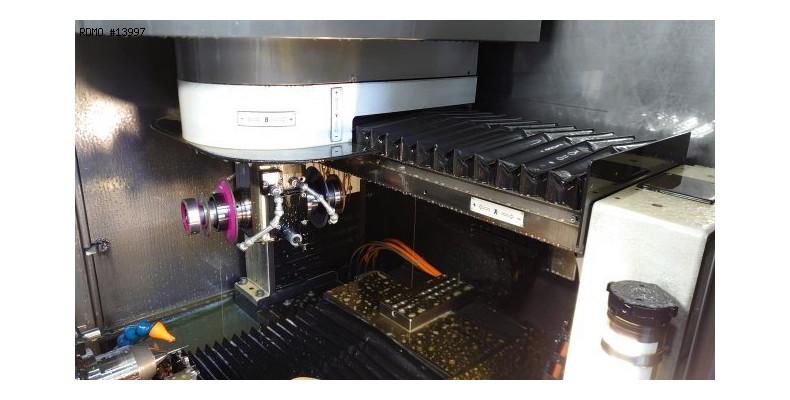

- Grinding spindle with 3 grinding wheels per spindle end

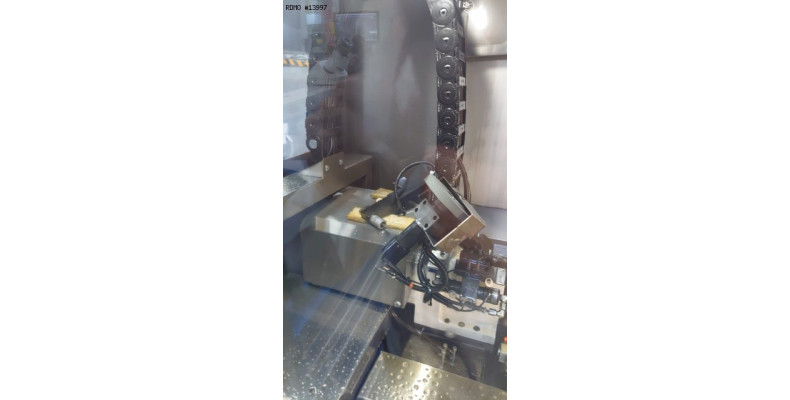

- 2 rests
- Measuring probe
- Status lamp 3 colors
- Knurl dressing device
- Grinding wheel wear compensation

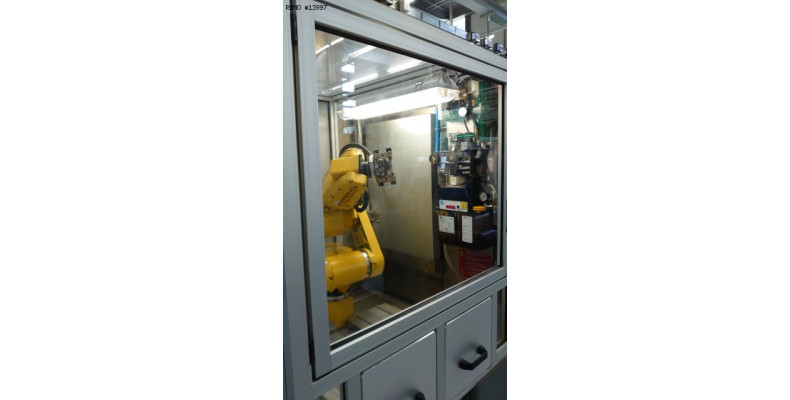

- Fanuc loading robot
- Coolant tank

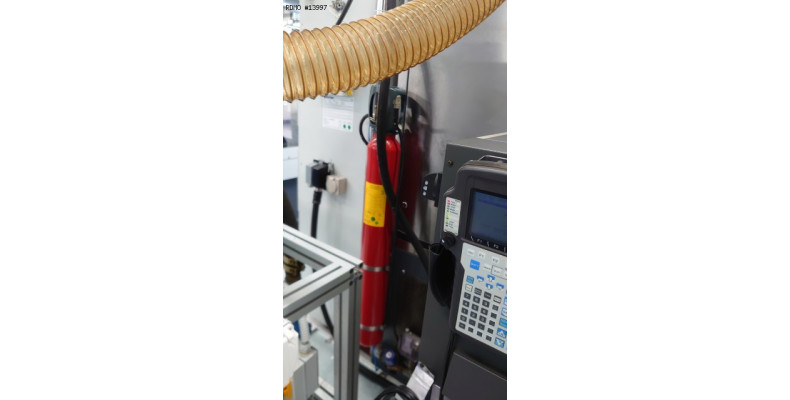

- Fire fighting system

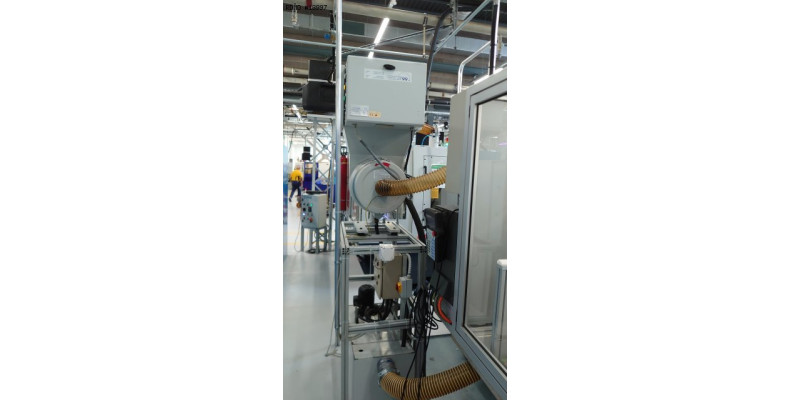

- Aspiration system

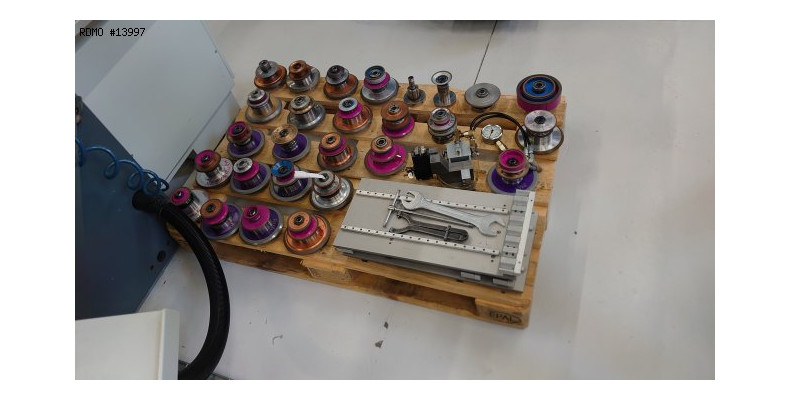

- Various grinding wheels
