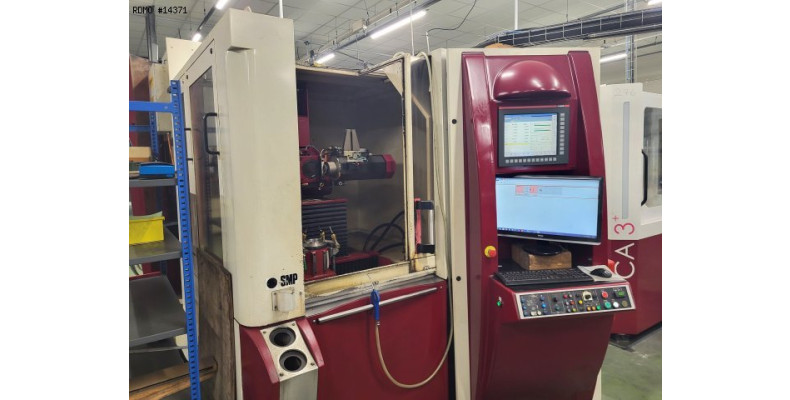

- Axes : 5
- Max. tool diameter : 150 [mm]
- Max. tool length with manual loading : 300 [mm]
- Max. tool length with auto loading : 140 [mm]
- Max. tool weight : 25 [kg]
WORKHEAD (A-AXIS)
- Attachment : ISO 50
- Strokes X/Z : 360 / 300 [mm]
- Stroke : 360 [°]
- Max. speed : 800 [r/min]

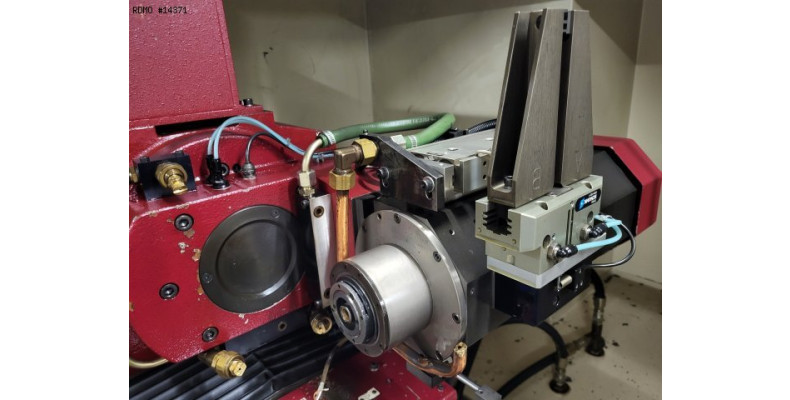

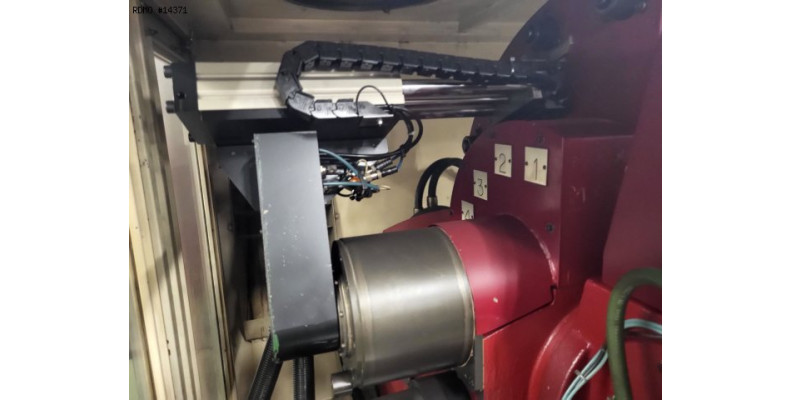

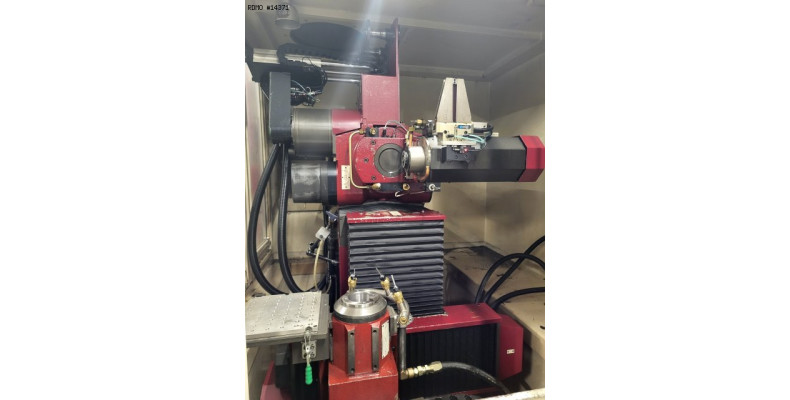

WHEELHEAD (B-AXIS)
- Attachment : HSK-E40
- Stroke Y : 200 [mm]
- Stroke : -30 / +180 [°]
- Max. wheel diameter : 125 [mm]
- Max. speed : 20.000 [r/min]
- Power : 7 [kW]
WHEEL MAGAZINE
- Number of positions : 4
TOOL MAGAZINE
- Type : using the linear axes, with Schunk collet
- Tool length : 40 – 140 [mm]
- Tools Ø4-6 per pallet : 200
- Tools Ø6-10 per pallet : 96
- Tools Ø6-16 per pallet : 54
ELECTRICS
- Main voltage : 400 [V]
- Total power : 19 [kW]
DIMENSIONS
- Floor space : 2.200 x 3.350 [mm]
- Height : 2.600 [mm]
- Weight: 2.500 [kg]
Equipment

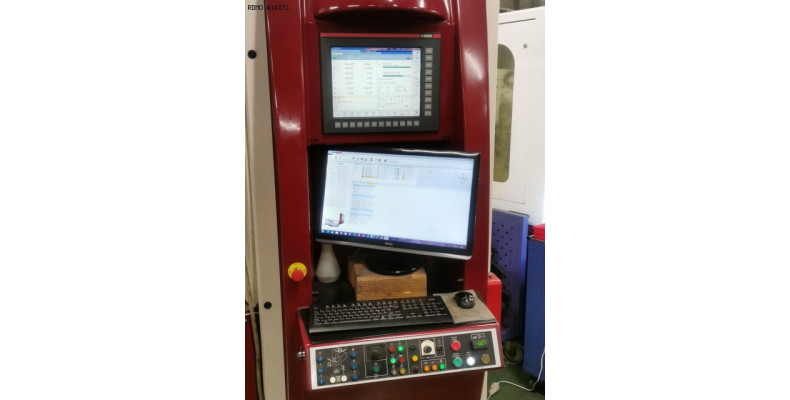

- CNC : NUM AXIUM Power P2
- Software : Easygrind 6.08
- Linear scales upon X/Y/Z : HEIDENHAIN
- Spindle cooling unit
- Coolant tank with pump : 10 [bars]
* with retractable nozzle
- Mist suction unit : ELBARON RON/A 100 DV
- Airblow upon tool
- Fire estinguisher (to be checked buy the buyer through a specialist)
- Number of wheel supports : 12
- Number of pallets : 4

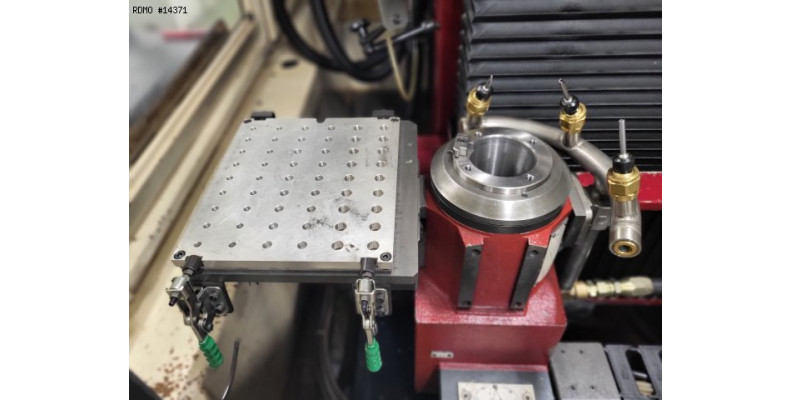

- 1 collet chuck ISO50 with auto clamping
- 1 collet chuck ISO50 with manual clamping, capacity Ø : 32 [mm]
- 1 collet chuck ISO50 with manual clamping, capacity Ø : 20 [mm]

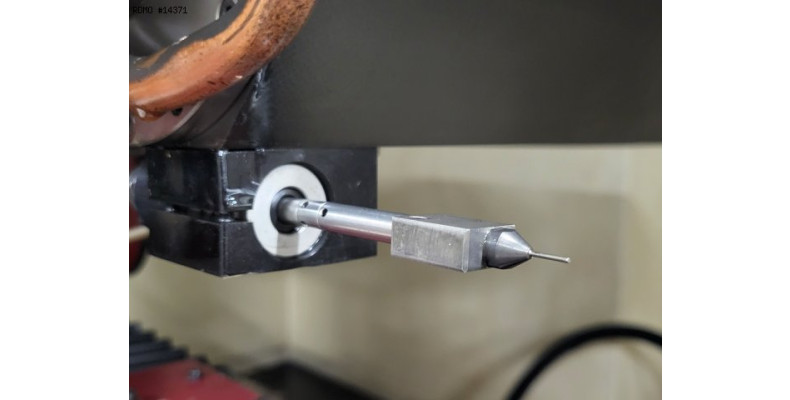

- 1 MASTER calibration device for self-calibration of axes and probe
