EMAG VL3 F 3 axis

Turning Vertical cnc lathe

14623

PDF datasheet to download:

Brand: EMAG

Model: VL3 F

Year: 2011

Serial: 102723

14623

EMAG VL3 F 3 axis

Turning Vertical cnc lathe

PDF datasheet to download:

Brand: EMAG

Model: VL3 F

Year: 2011

Serial: 102723

Ask Price

Caracteristics

number of axes : 3
CAPACITY
- max workpiece diameter : 210 [mm]
- max workpiece height : 100 [mm]
- strokes (X/Z) : 400 / 200 [mm]
- rapid feeds (X/Z) : 60 / 30 [m/min]
TURRET
- number of positions : 12
- tool-holder : VDI40
- number of rotary positions : 12
- speed of rotary tools : 6.000 [r/min]
- power of rotary tools : 8.5/7.5 [kW]
SPINDLE
- power : 16 [kW]
- speeds : 0 to 6000 [rpm]
- indexing precision of C axis : 0,001 [°]
POWER SUPPLY
- Supply voltage : 400 [V]
- Total installed power : 36 [kW]
WEIGHT & DIMENSIONS
- Machine floor space : 2,460 x 1,550 [mm]
- Machine height : 2,300 [mm]
- Machine weight : 7.000 [kg]
MACHINE HOURS
- Working hours : 36.147 [h]

Equipment

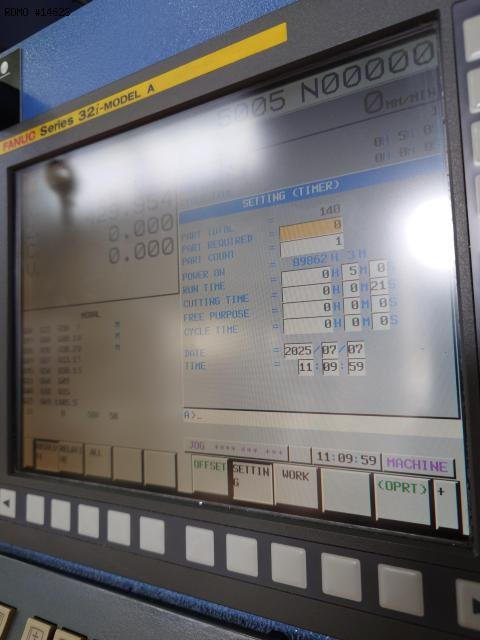

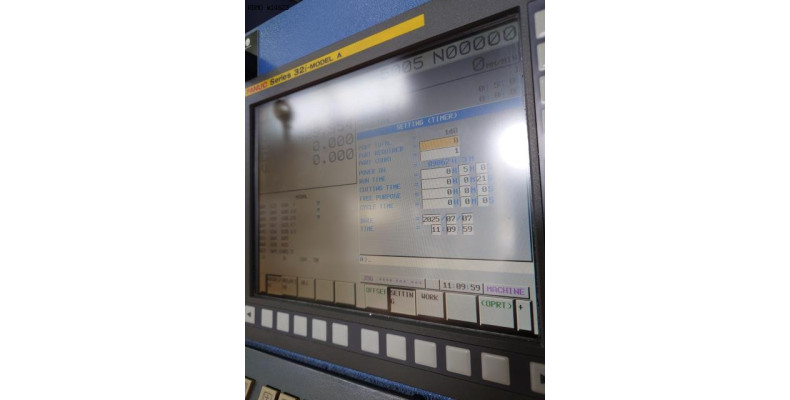

- CNC : Fanuc 32i Model A
- automatic parts loader with conveyor
- Coolant tank
* with high-pressure pump
- Chip conveyor
- Oil mist extractor
