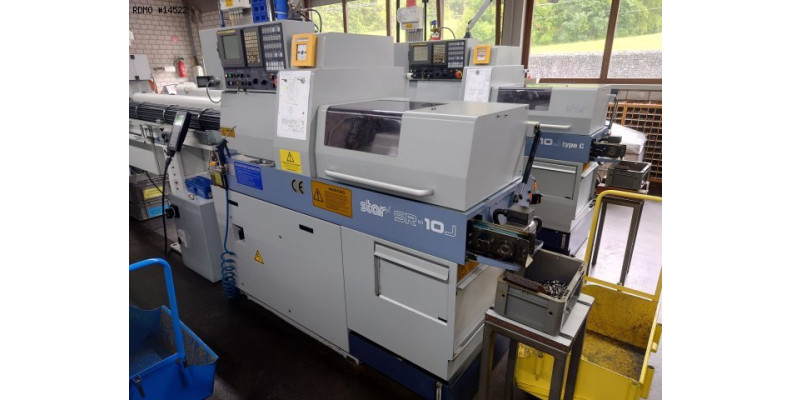

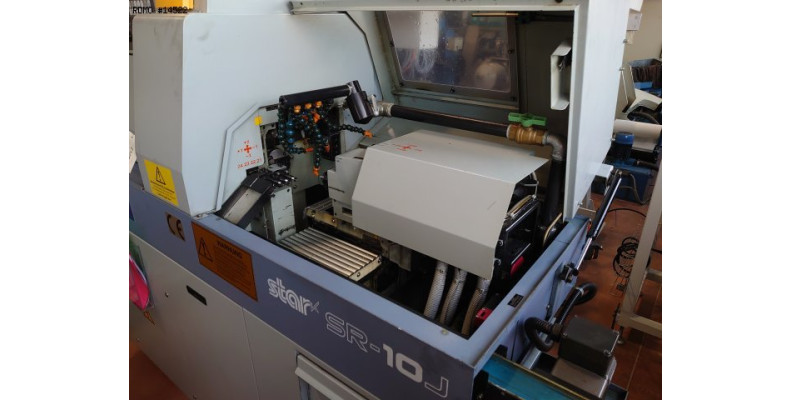

STAR SR10 J 5 axis

14522
Brand: STAR
Model: SR10 J
Year: 2006
Serial: 0176014
14522
STAR SR10 J 5 axis
Brand: STAR
Model: SR10 J
Year: 2006
Serial: 0176014

Caracteristics & Equipment

Caracteristics
- Number of axes : 5
- Number of spindles : 2
MAIN SPINDLE
- Max. bar diameter : 10 [mm]
- Max. machining length : 135 [mm]
- Spindle speeds : 15000 [rpm]
- Spindle power : 3.7 [kW]
- C axis indexing precision : 0.001 [°]
COUNTER-SPINDLE
- Max. bar diameter : 10 [mm]
- Spindle speeds : 10000 [rpm]
- Spindle power : 1.1 [kW]

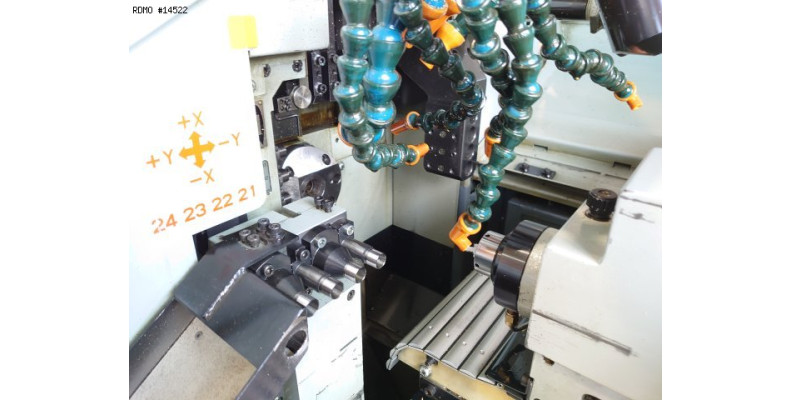

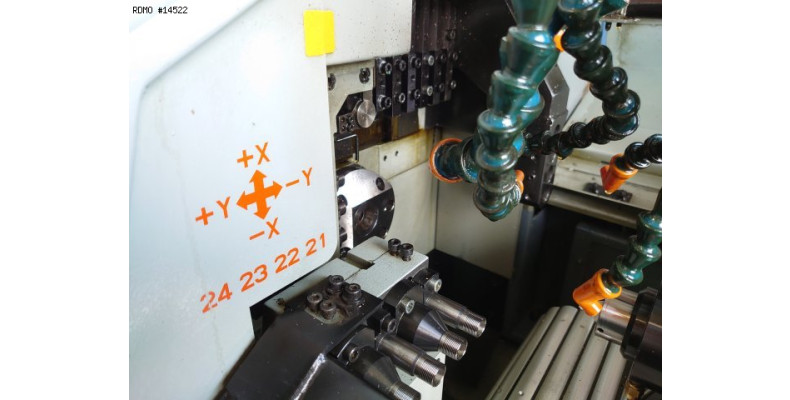

GUIDE BUSH HOLDER 1
- Number of positions : 9
- Number of motorized positions : 3
- Live tools speed : 10000 [rpm]
END ATTACHMENT
- Number of positions : 4
SECONDARY OPERATION
- Number of positions : 8
POWER SUPPLY
- Supply voltage : 400 [V]
- Total installed power : 3.1 [kW]
WEIGHT & DIMENSIONS
- Machine floor space : 1865 x 775 [mm]
- Machine height : 1695 [mm]
- Machine weight : 1400 [kg]
MACHINE HOURS
- Number of working hours : 42116 [h]
Equipment

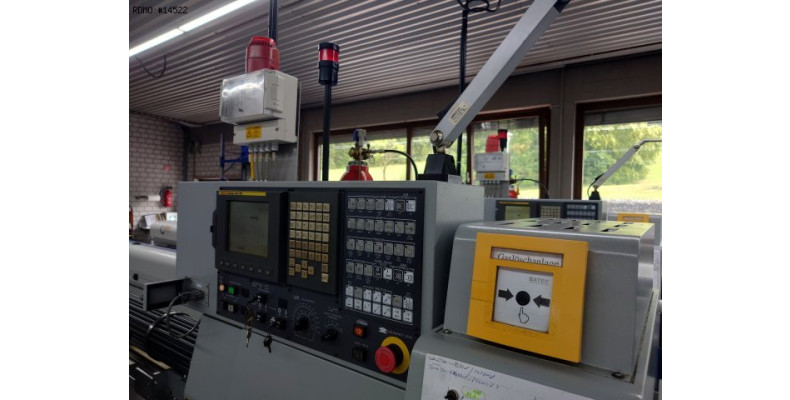

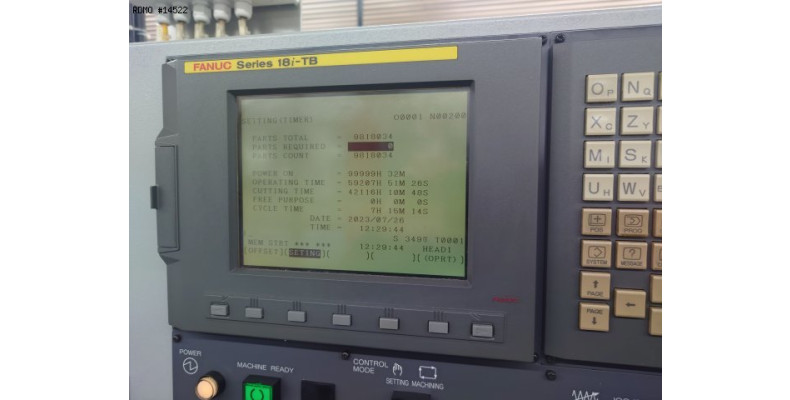

- CNC : Fanuc 18i-TB
- Interface : Ethernet / RS232
- Rotating guide bush
- Parts catcher
- Parts conveying strip
- Ejection of workpiece
- Coolant tank
- Fire extinguisher *
NB : working order not guaranteed. To have it checked by a qualified organization of the buyer.
- Electric transformer
