- Number of axes : 8
- Number of spindles : 2
MAIN SPINDLE
- Max. bar diameter : 32 [mm]
- Max. machining length : 320 [mm]
- Spindle speeds : 8000 [rpm]
- Spindle power : 7.5 [kW]
- C axis indexing precision : 0.001 [°]

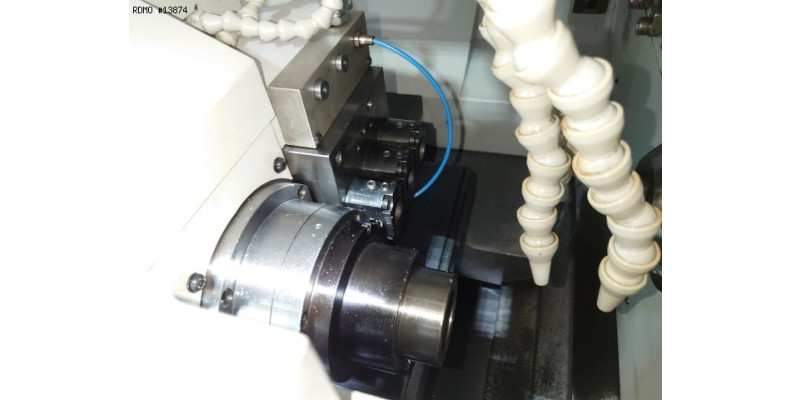

COUNTER-SPINDLE
- Max. bar diameter : 32 [mm]
- Spindle speeds : 8000 [rpm]
- Spindle power : 3.7 [kW]
- C axis indexing precision : 0.001 [°]

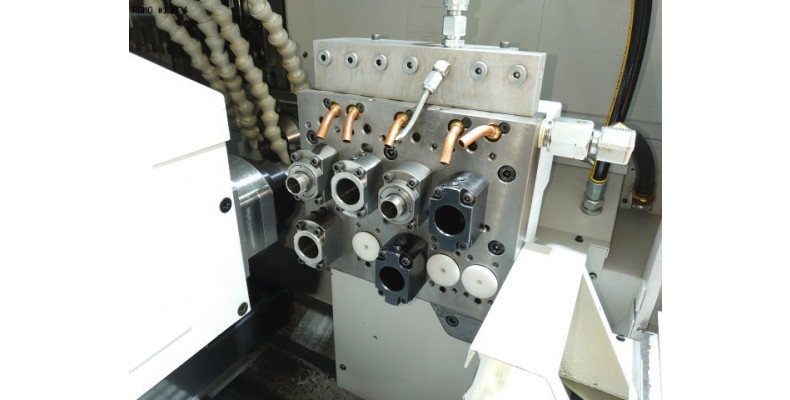

GUIDE BUSH HOLDER 1
- Number of positions : 9
- Number of motorized positions : 4
END ATTACHMENT
- Number of positions : 11
SECONDARY OPERATION
- Number of positions : 3
POWER SUPPLY
- Supply voltage : 200 [V]
- Total installed power : 13.2 [kVA]
WEIGHT & DIMENSIONS
- Machine floor space : 2800 x 1400 [mm]
- Machine weight : 2900 [kg]
MACHINE HOURS
- Number of hours under power : 31600 [h]
Equipment

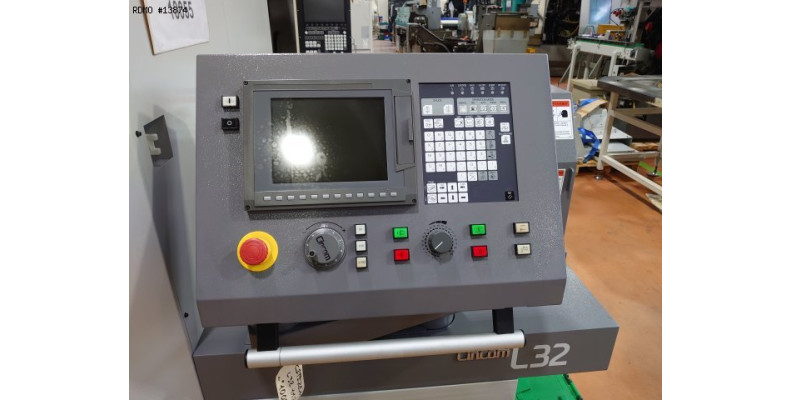

- CNC : Cincom System M70LPC-VU
- Rotating guide bush
- Axis B
- Parts conveying strip
- Ejection of workpiece

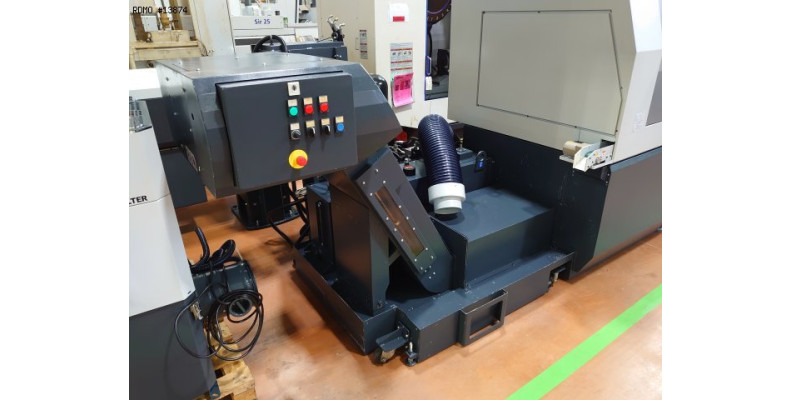

- Chips conveyor
- Coolant tank
* with high-pressure pump : COOLBLASTER [bars]

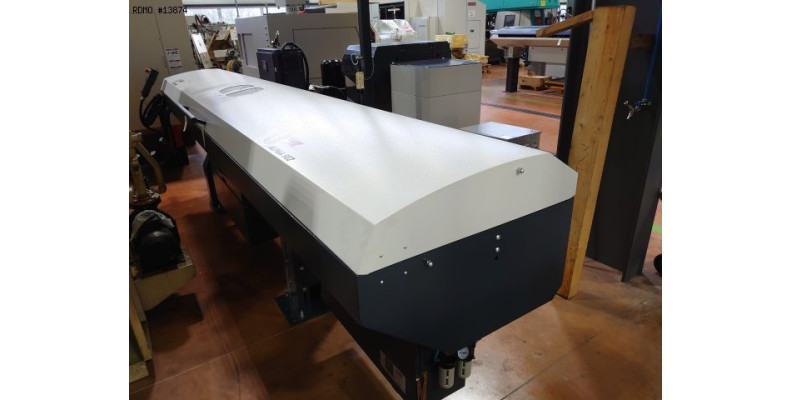

- Bar loader : LNS Alpha 552

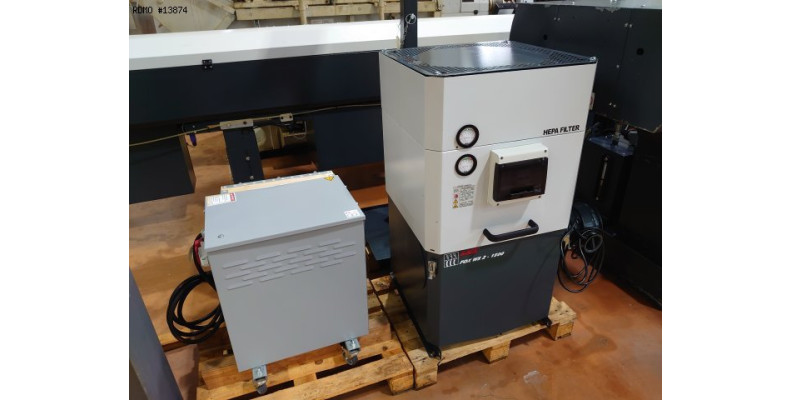

- Oil mist extractor : LNS FOX WS 2 - 1500
- Electric transformer
This machine tool is sold. We offer equivalent models at the bottom of page.
