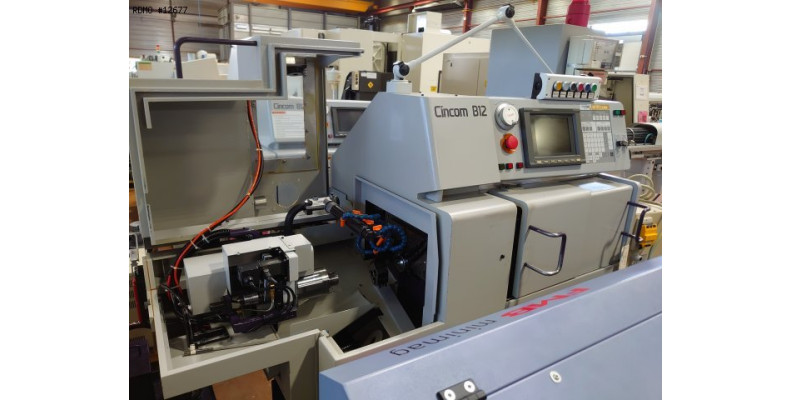

CITIZEN B12 4 axis

12677
Brand: CITIZEN
Model: B12
Year: 2000
Serial: B 2247
12677
CITIZEN B12 4 axis
Brand: CITIZEN
Model: B12
Year: 2000
Serial: B 2247

Caracteristics & Equipment

Caracteristics
- Number of axes : 4
- Number of spindles : 2
MAIN SPINDLE
- Max. bar diameter : 12 [mm]
- Max. machining length : 135 [mm]
- Spindle speeds : 8000 [rpm]
- Spindle power : 2.2 [kW]
COUNTER-SPINDLE
- Max. bar diameter : 12 [mm]
- Z stroke : 120 [mm]
- Spindle speeds : 7000 [rpm]
GUIDE BUSH HOLDER 1
- Number of positions : 5
END ATTACHMENT
- Number of positions : 3
SECONDARY OPERATION
- Number of positions : 3
POWER SUPPLY
- Supply voltage : 400 [V]
WEIGHT & DIMENSIONS
- Machine floor space : 1500 X 770 [mm]
- Machine weight : 1400 [kg]
Equipment

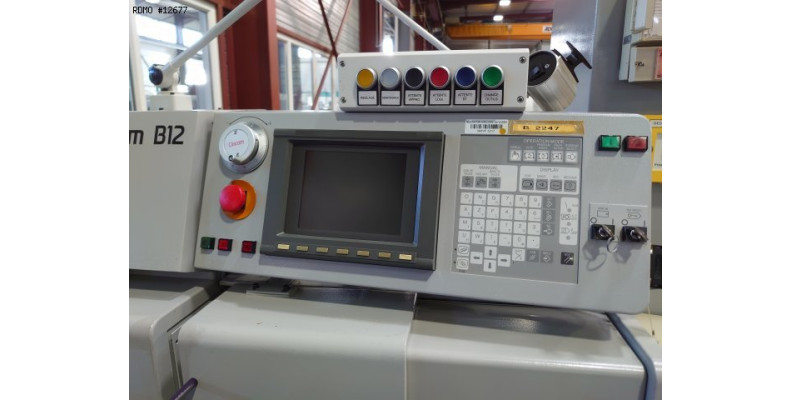

- CNC : Fanuc
- 3 colors status lamp
- Rotating guide bush
- Parts catcher
- Ejection of workpiece

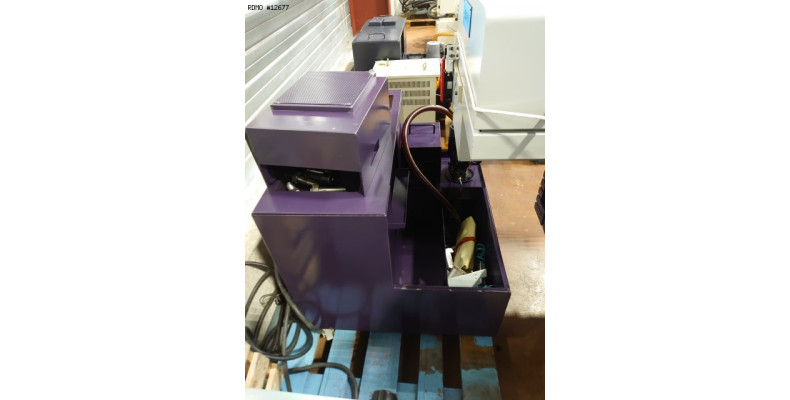

- Coolant tank

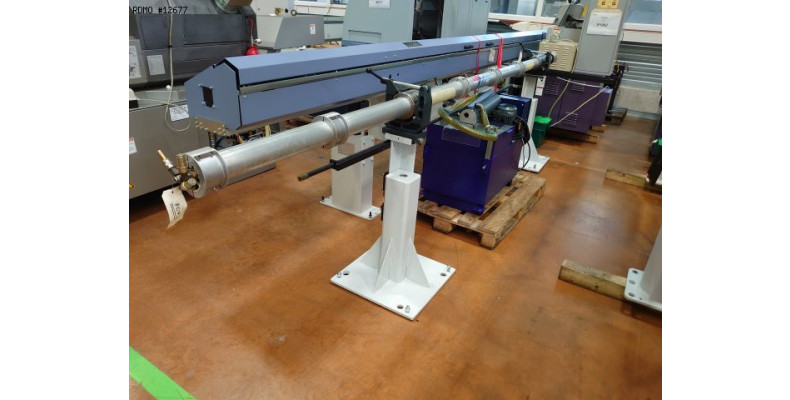

- Hydraulic bar-push brand/type : LNS 3.16 HS 4.4
- Electric transformer
