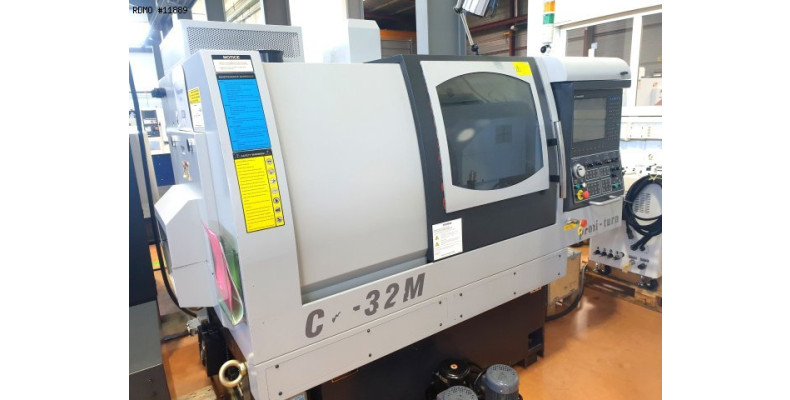

CC MACHINERY CB-32M 7 axis

- Number of axes : 7
- Number of spindles : 2

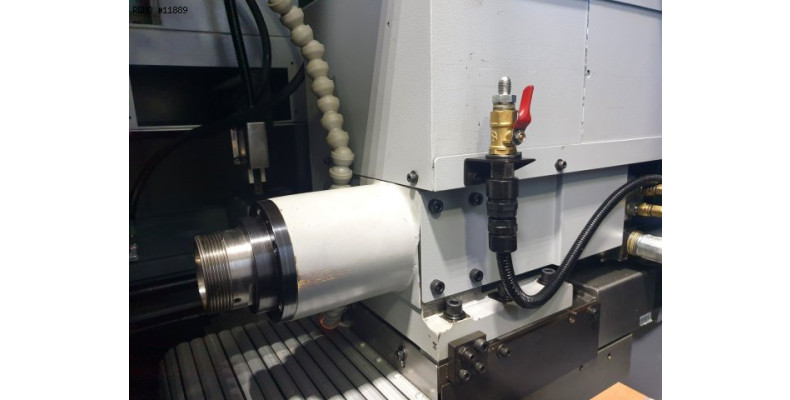

MAIN SPINDLE
- Max. bar diameter : 32 [mm]
- Travel : 165 [mm]
- Spindle speeds : 6000 [rpm]
- Spindle power : 7.5 [kW]
- C axis indexing precision : 0.001 [°]
COUNTER-SPINDLE
- Max. bar diameter : 27.5 [mm]
- Z stroke : 285 [mm]
- X stroke : 290 [mm]
- Spindle speeds : 6000 [rpm]
- Spindle power : 4.4 [kW]
- C axis indexing precision : 0.001 [°]

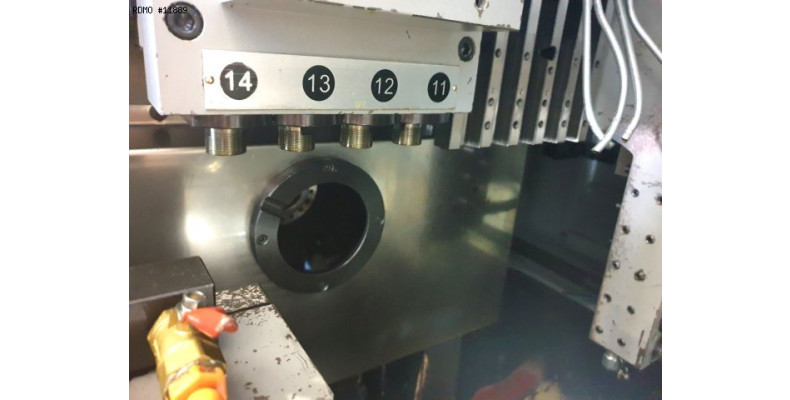

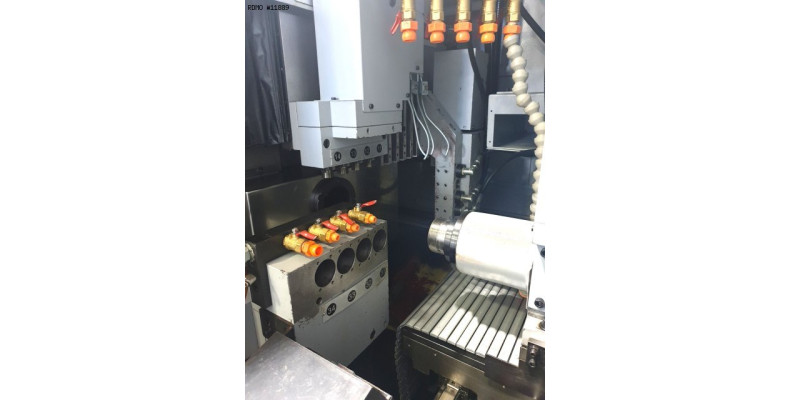

GUIDE BUSH HOLDER 1
- Number of positions : 9
- Number of motorized positions : 4
- Live tools speed : 6000 [rpm]
- X/Y stroke : 185/490 [mm]
END ATTACHMENT
- Number of positions : 8
- Number of motorized positions : 3
- Live tools speed : 6000 [rpm]

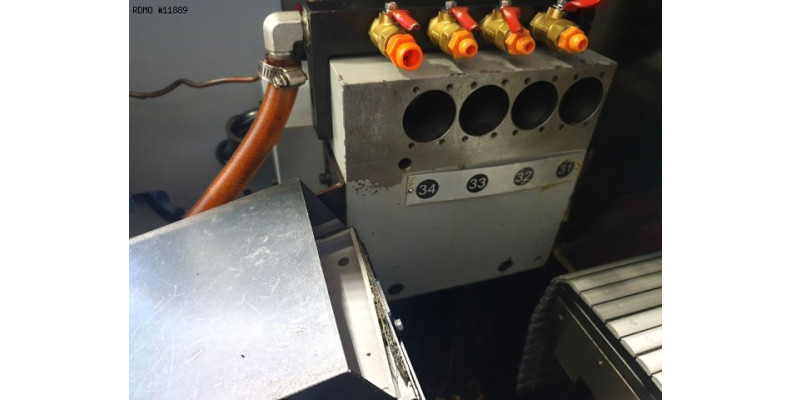

SECONDARY OPERATION
- Number of positions : 9
- Number of motorized positions : 4
- Live tools speed : 6000 [rpm]
POWER SUPPLY
- Supply voltage : 400 [V]
- Total installed power : 31 [kW]
WEIGHT & DIMENSIONS
- Machine floor space : 3050X1882 [mm]
- Machine height : 1973 [mm]
- Machine weight : 3800 [kg]

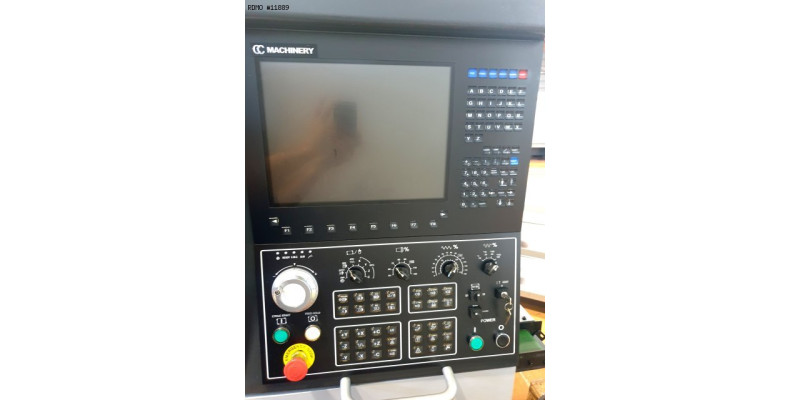

- CNC : SYNTEC
- Interface : RS232/ PCMCIA
- 3 colors status lamp
- Parts catcher

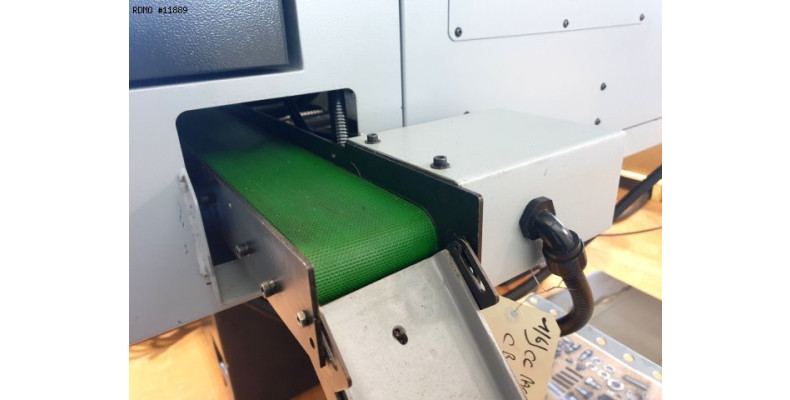

- Parts conveying strip
- Ejection of workpiece
- Chips conveyor

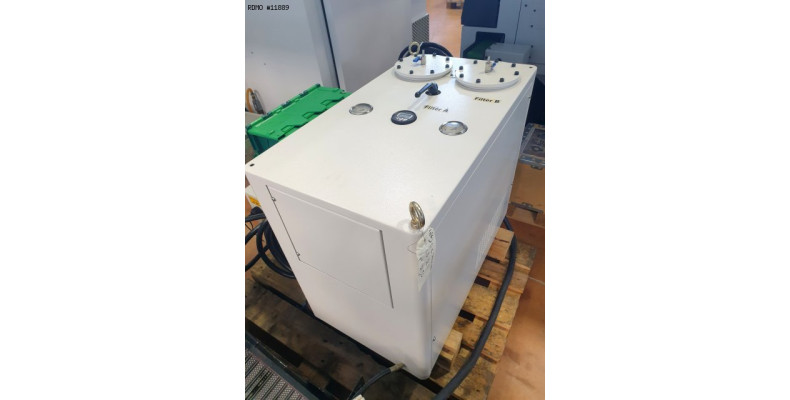

- Coolant tank
* with high-pressure pump : 70 [bars]

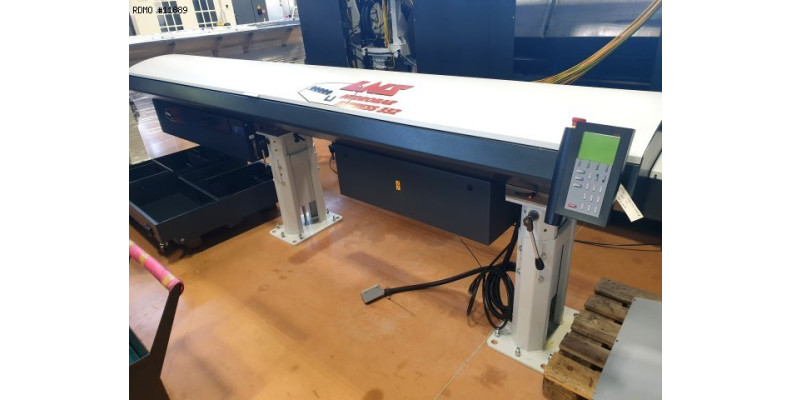

- Bar loader : LNS EXPRESS 332
- Electric transformer
