- Number of spindles : 8
- Number of counter-spindles : 1
- Hirth teeth
- Number of cross slides : 8
- Max. production : 50 [parts/min]
SPINDLES
* Max. bar diameter : 21 [mm]
* Spindle speeds : 620-6000 [rpm]
COUNTER-SPINDLE
- Mechanical counter-spindle
POWER SUPPLY
- Supply voltage : 380 [V]
WEIGHT & DIMENSIONS
- Machine floor space : 4700x1200 [mm]
- Machine height : 2250 [mm]
- Machine weight : 5850 [kg]
Equipment

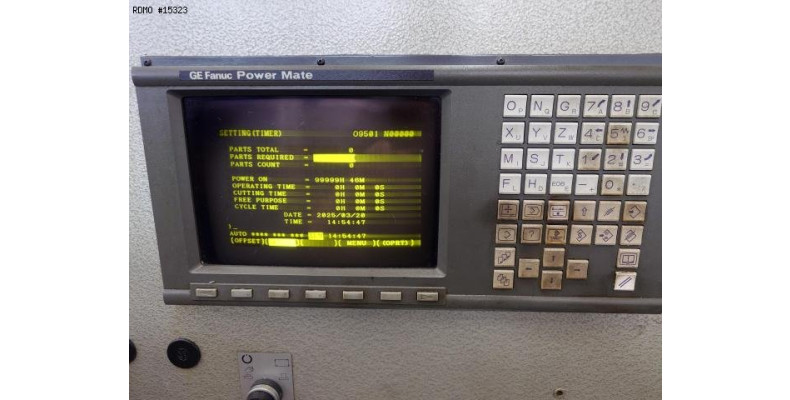

- CNC : Fanuc Power mate
- Oscillating stop
- Coolant tank
* with high-pressure pump : 80 [bars]
- Cooling unit

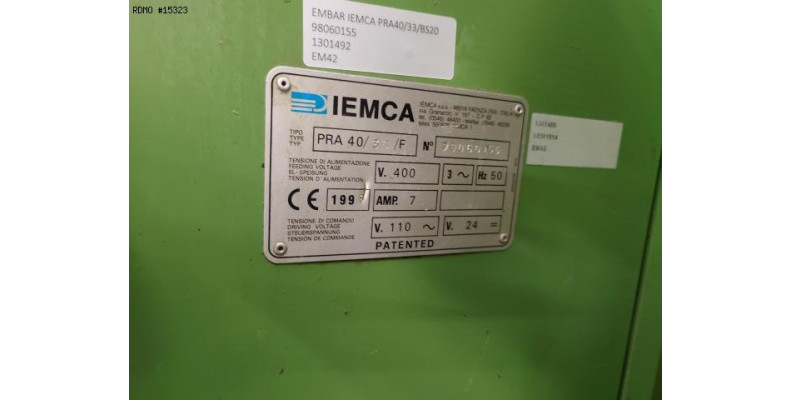

- Bar loader : PRA 40/33F
- Bar holder and stand
