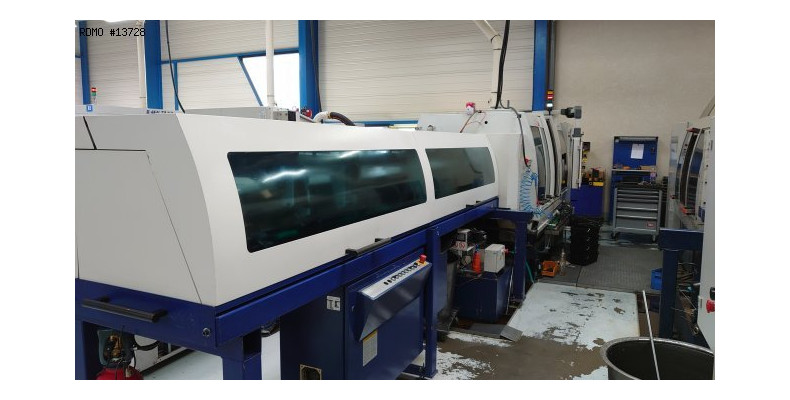

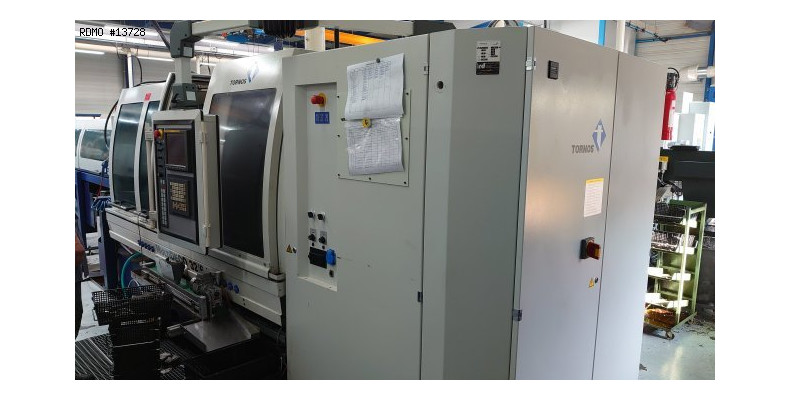

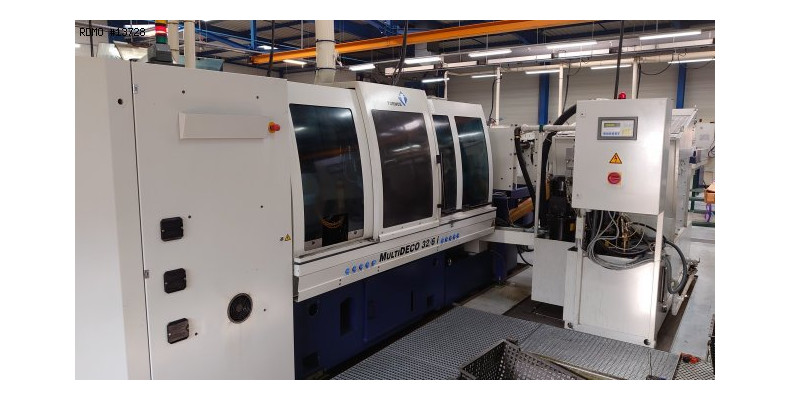

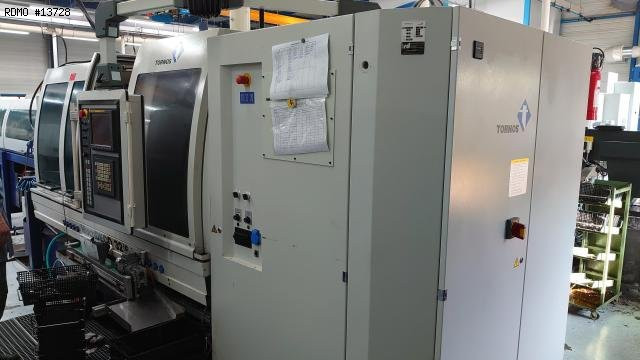

TORNOS MULTIDECO 32/6i 17 axis

Turning Cnc multispindle lathe

13728

PDF datasheet to download:

Brand: TORNOS

Model: MULTIDECO 32/6i

Year: 2004

Serial: 4944

13728

TORNOS MULTIDECO 32/6i 17 axis

Turning Cnc multispindle lathe

PDF datasheet to download:

Brand: TORNOS

Model: MULTIDECO 32/6i

Year: 2004

Serial: 4944

Ask Price

Caracteristics

- number of axes : 18
- number of spindles : 6
- max round bar diameter : 32 [mm]
- max clearance in hexagonal bar : 28 [mm]
- spindle speed : 400 - 5 000 [rpm]
- capacity of the sub-spindle : 32 [mm]
- number of the cross slides : 5
- strokes of the cross slides
in position 2 and 3, X x Z : 60 x 80 [mm]
- strokes of the cross slides
in position 1, 4 and 5 , X x Z : 60 x 100 [mm]
- size : 8 300 x 2 300 x 2 240 [mm]
- weight : 11 500 [kg]
- number of working hours : 52066 [h]

Equipment

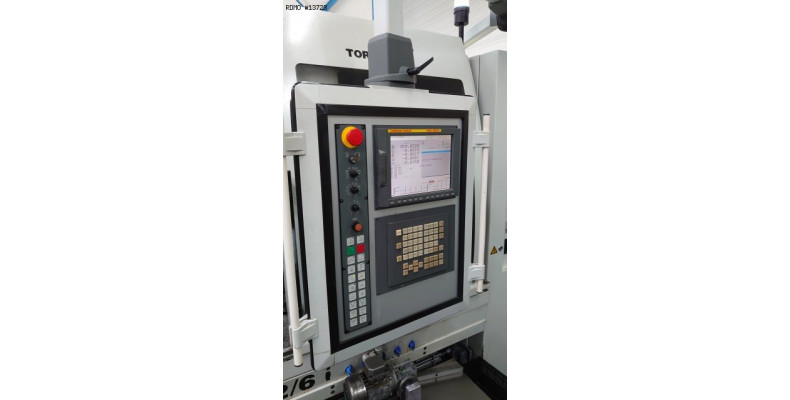

- numerical control TORNOS PNC DECO
- spindle stop pos 4
- numerical sub-spindle
with counter operation device
- parts catcher with conveying strip
- 5 turning tool-holders GOLTENBODT with collar
- 1 cutting-off tool-holder GOLTENBODT
- 4 fixed drillers
- 1 driven driller

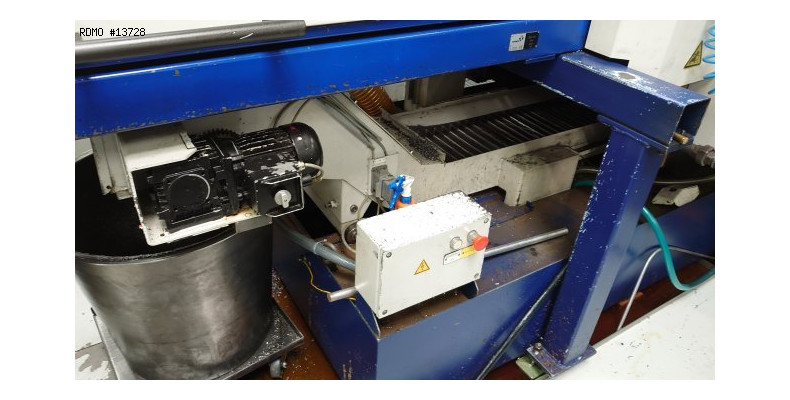

- chips conveyor

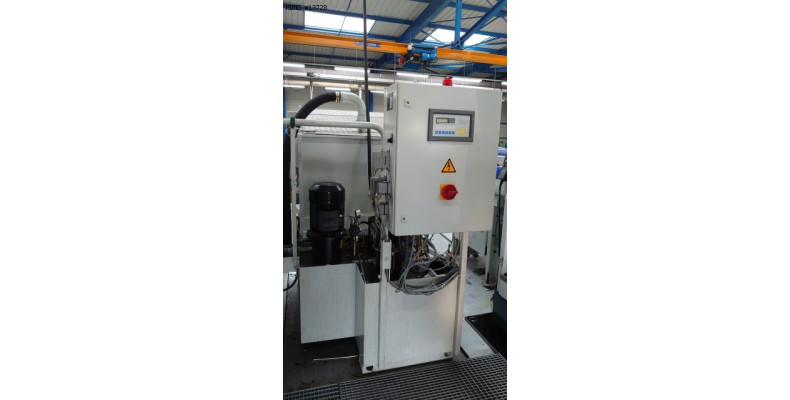

- high pressure pump

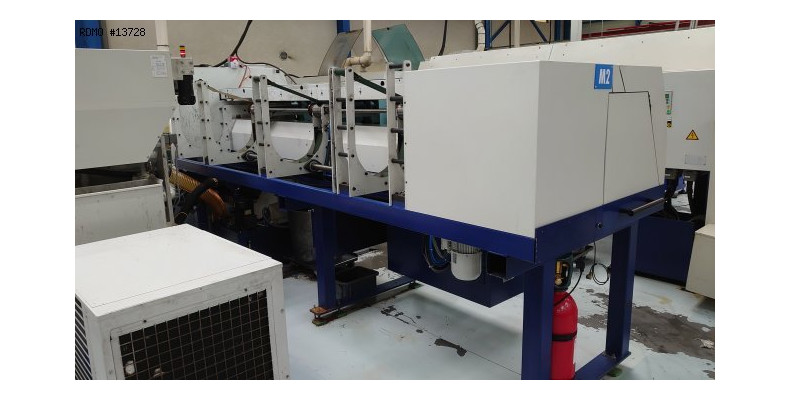

- integrated bar feeder TORNOS MSF 832/6
- lamp
