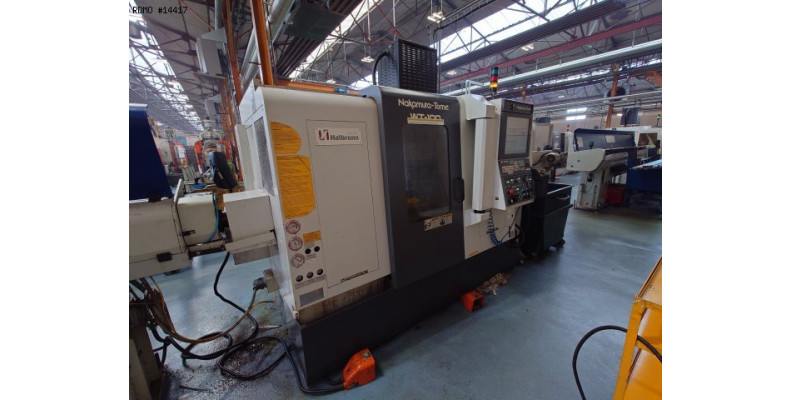

NAKAMURA WT 100 8 axis

14417
Brand: NAKAMURA
Model: WT 100
Year: 2012
Serial: M105307
14417
NAKAMURA WT 100 8 axis
Brand: NAKAMURA
Model: WT 100
Year: 2012
Serial: M105307

Caracteristics & Equipment

Caracteristics
- Number of axes : 8
- Number of spindles : 2
- Number of turrets : 2
MAIN SPINDLE
- Spindle nose : A2-5
- Spindle power : 11 [kW]
- Spindle speeds : 6000 [rpm]
- Max. bar diameter : 42 [mm]
- Max. turning diameter : 190 [mm]
- C axis indexing precision : 0,001 [°]
COUNTER-SPINDLE
- Spindle nose : A2-5
- Spindle power : 11 [kW]
- Spindle speeds : 6000 [rpm]
- Max. bar diameter : 42 [mm]
- C axis indexing precision : 0,001 [°]
TRAVEL
- Z stroke : 525 [mm]
- Spindle / counter-spindle distance : 735 [mm]
TURRET 1
- Number of positions : 24
- Number of motorized positions : 12
- X/Z stroke : 135/503 [mm]
- Y stroke : +/- 31 [mm]
- Live tools speed : 6000 [rpm]
- Live tools power : 7.1/2.2 [kW]
TURRET 2
- Number of positions : 24
- Number of motorized positions : 12
- X/Z stroke : 135/503 [mm]
- Live tools speed : 6000 [rpm]
- Live tools power : 7.1/2.2 [kW]
POWER SUPPLY
- Supply voltage : 400 [V]
- Total installed power : 61 [kVA]
WEIGHT & DIMENSIONS
- Machine floor space : 2630 X 1720 [mm]
- Machine height : 1940 [mm]
- Machine weight : 6000 [kg]
MACHINE HOURS
- Number of hours under power : 44554 [h]
Equipment

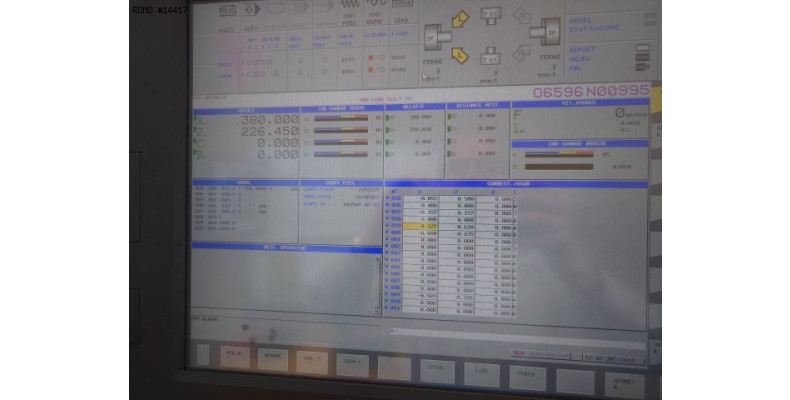

- CNC : Fanuc 31i model B
- Interface : Ethernet / RS232 / PMCIA
- 3 colors status lamp
- Coolant tank
* with high-pressure pump : 20 [bars]
- Chips conveyor : SERMETO
- Parts catcher : G-type
- Parts conveying strip

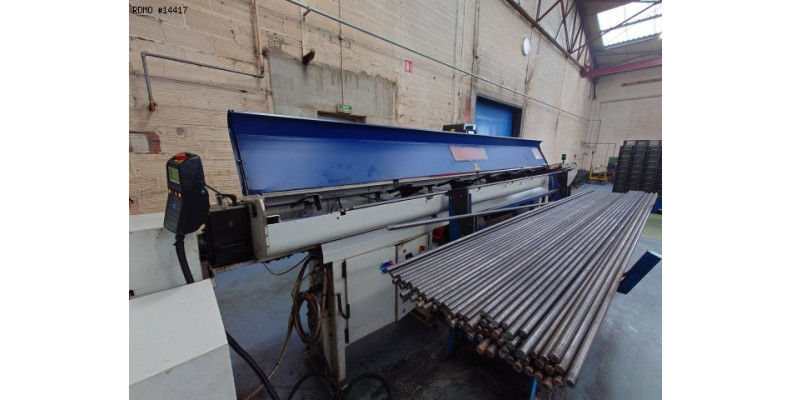

- Bar loader : IEMCA BOSS 552 HD/R
- Electric transformer
- Number of turning tool holders : 2
- Number of fixed tool holders : 10
- Collet chuck : HAINBUCH Spanntop
