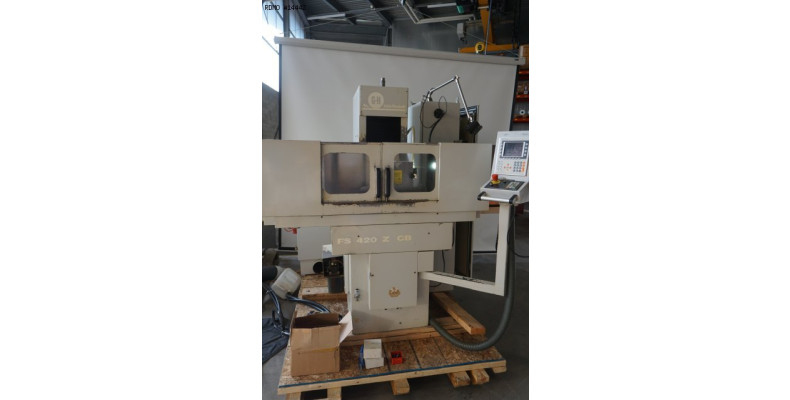

GEIBEL & HOTZ FS 420 ZCB

Grinding / sharpening / lapping / deburring / polishing Surface grinder

14442

PDF datasheet to download:

Brand: GEIBEL & HOTZ

Model: FS 420 ZCB

Year: 2005

Serial: 29290905

14442

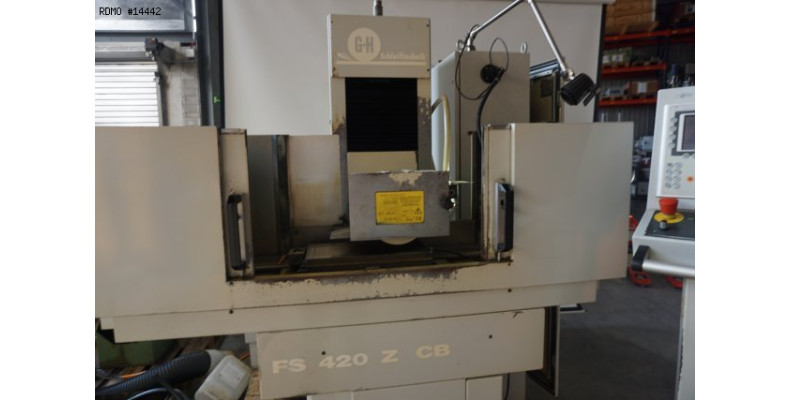

GEIBEL & HOTZ FS 420 ZCB

Grinding / sharpening / lapping / deburring / polishing Surface grinder

PDF datasheet to download:

Brand: GEIBEL & HOTZ

Model: FS 420 ZCB

Year: 2005

Serial: 29290905

Ask Price

Caracteristics

- Number of axes : 3
- Grinding length : 400 [mm]
- Grinding width : 210 [mm]

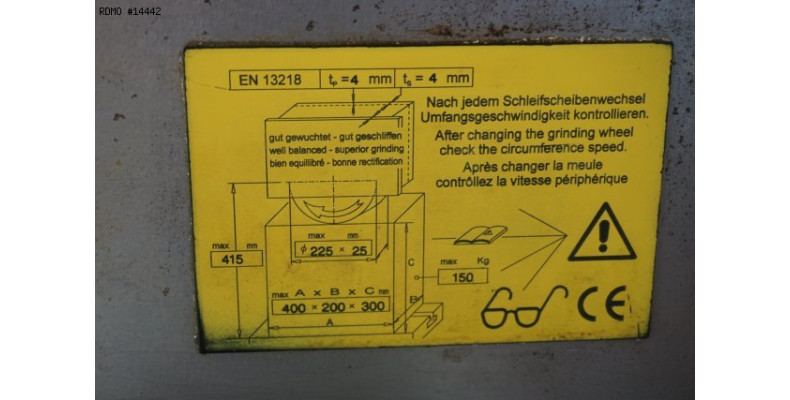

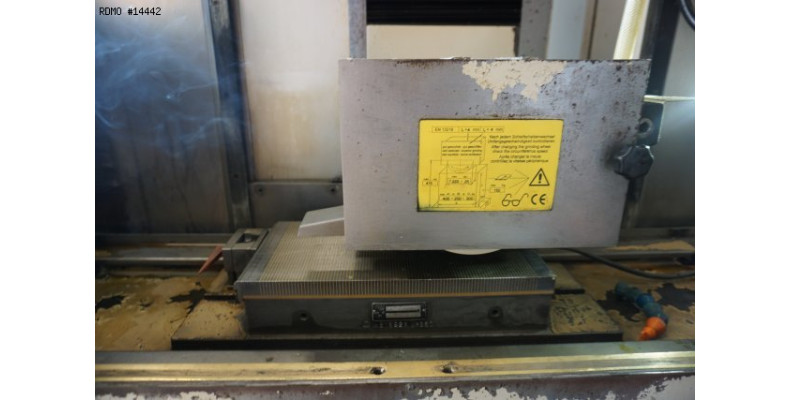

- Magnetic plate : 400 x 200 [mm]
- Tool clamping surface : 90 - 415 [mm]
- Max. loading capacity : 150 [Kg]
- Max. longitudinal travel : 420 [mm]
- Working speed : 5-35 [m min-1]
- Transversal travel : 190 [mm]

Speed
- Transversal : 100 - 1000 [mm min-1]
- Vertical : 100 - 1000 [mm min-1]
- Dimension of grinding wheel : 225 x 25 x 51 [mm]
- Motor power : 2.6 [kW]
- Total power required : ~13 [kW]
- Voltage : 400 [V]
- Frequency : 50 [Hz]
- Acoustic power level : 70 [dB]

Oil
- Capacity : ~ 6 [l]
- Weight : ~ 1200 [kg]

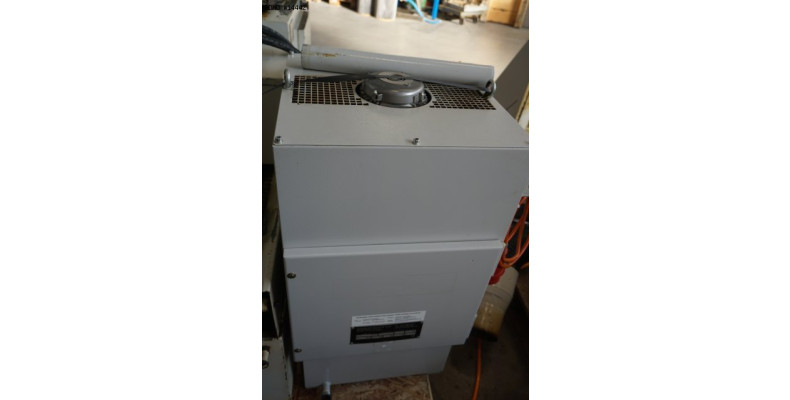

- Oil mist extractor : Elbaron TEB/BV2

Equipment

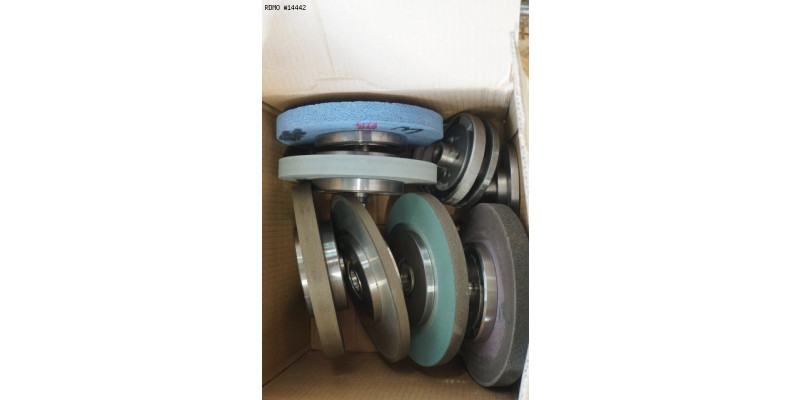

- Grinding wheels : 1
- Oil mist extractor : 1
- Balancing plates : 1
