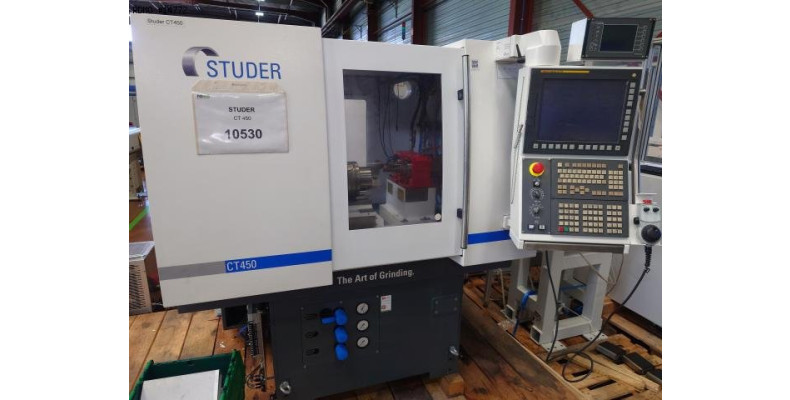

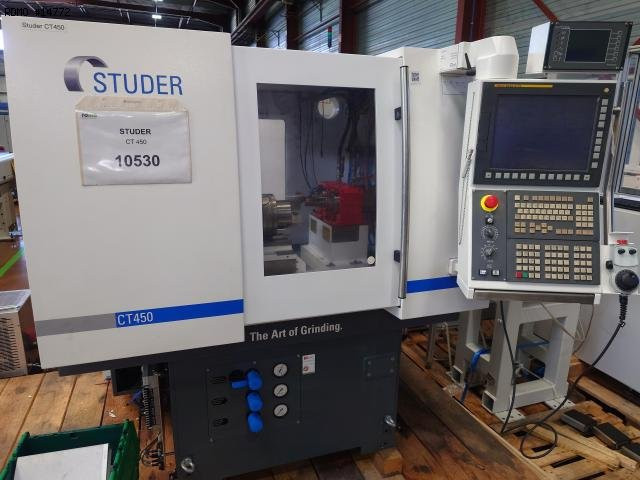

STUDER CT 450 2 axis

- Grinding length : 120 [mm]
- Center height : 102 [mm]
- Strokes (X/Z) : 450 x 200 [mm]
- Max speeds (X/Z) : 12 [m/min]

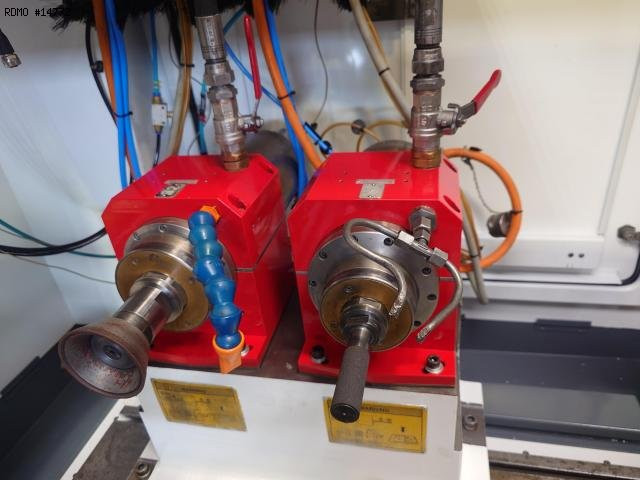

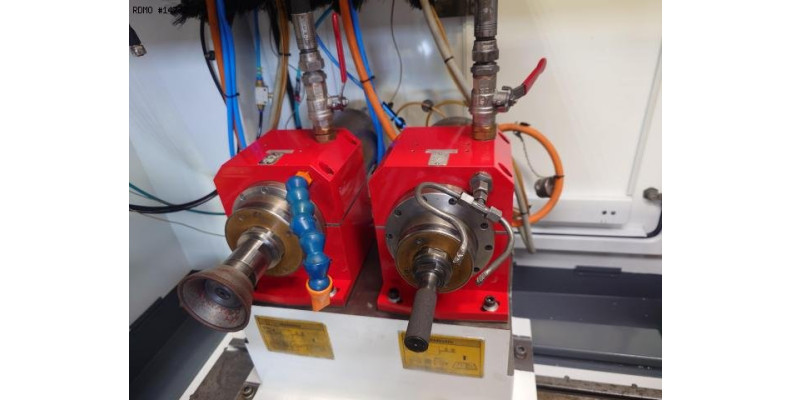

SPINDLE SUPPORT
- Spindle number : 2

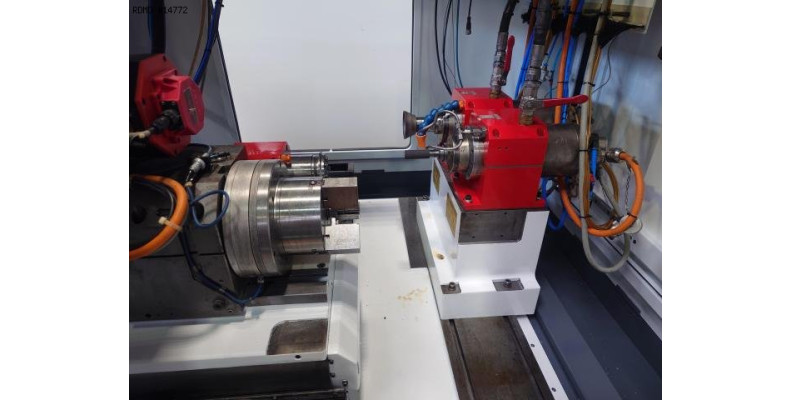

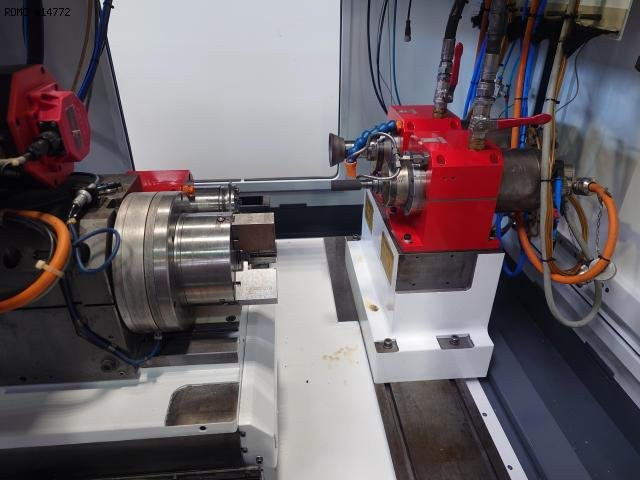

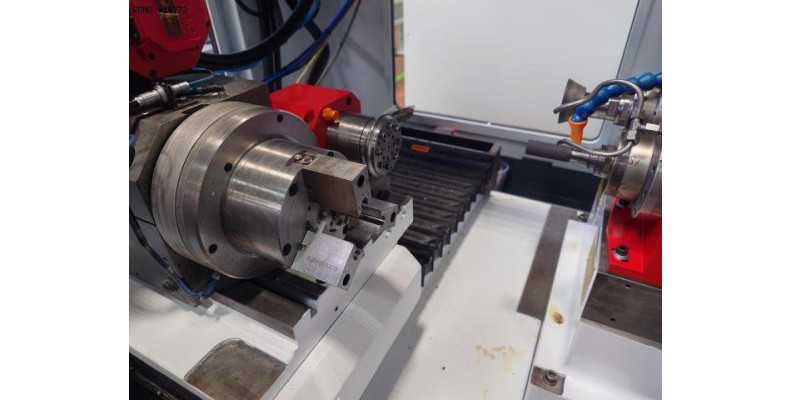

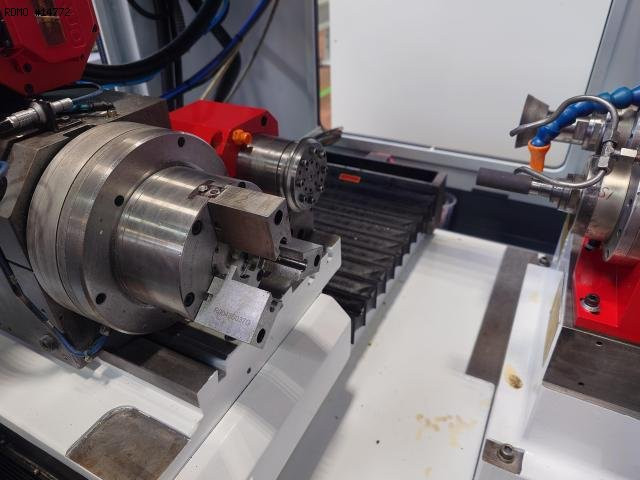

WORKPIECE HEADSTOCK
- Max. workhead speeds : 1500 [rpm]
- Spindle clearance : 28.6 [mm]
- Power : 1.4 [kW]
- Mounting tape r: A2.4/CM5
- Torque : 150 [Nm]
- Manual B axis angle : +/- 2 [°]
- C axis : 0.0001 [°]
POWER SUPPLY
- Installed power: 34 [kVA]
DIMENSIONS
- Floor dimensions : 3600 x 2800 [mm]
- Machine weight : 2600 [kg]
MACHINE HOURS

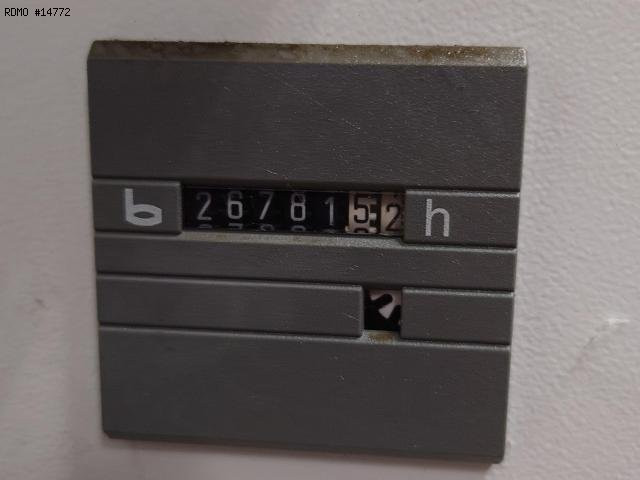

- Number of hours under power : 26781 [h]

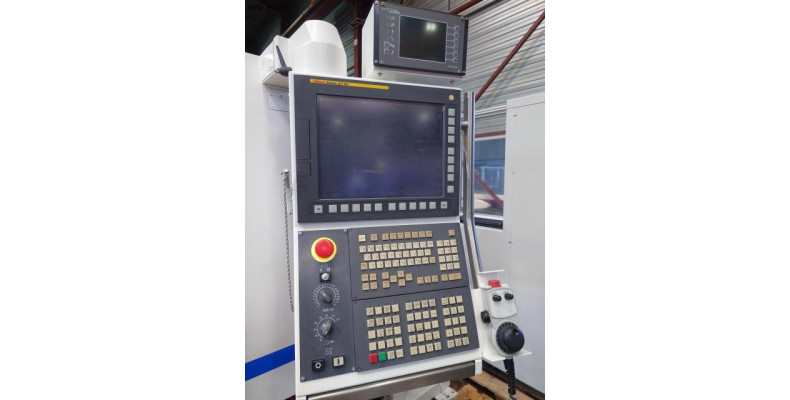

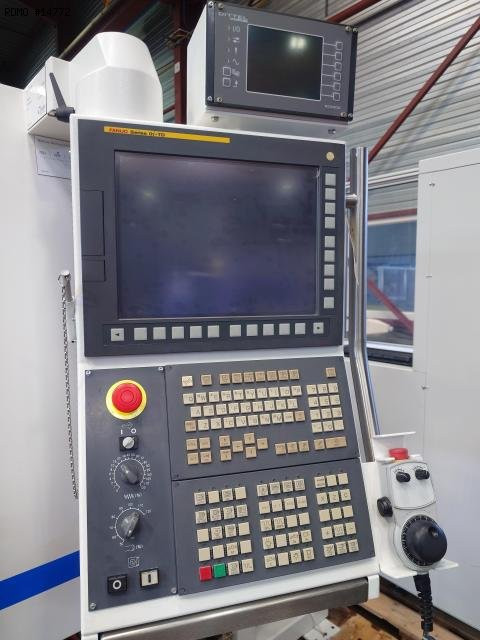

- Fanuc Oi-TD control
- Spindle centre coolant

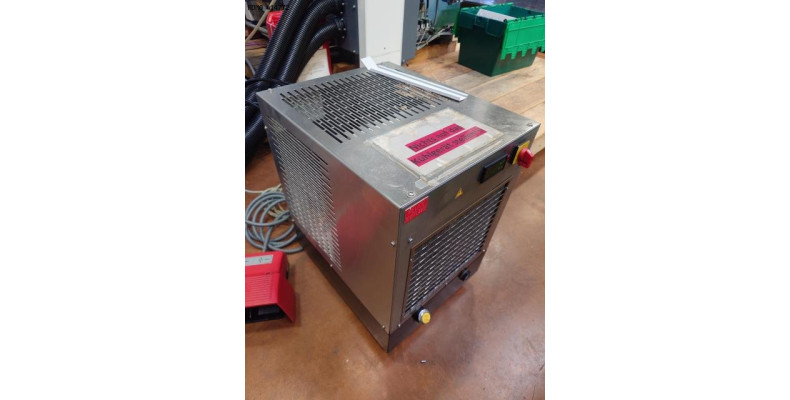

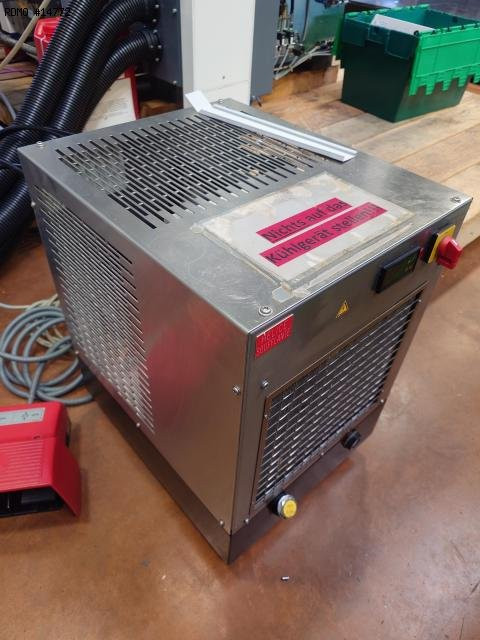

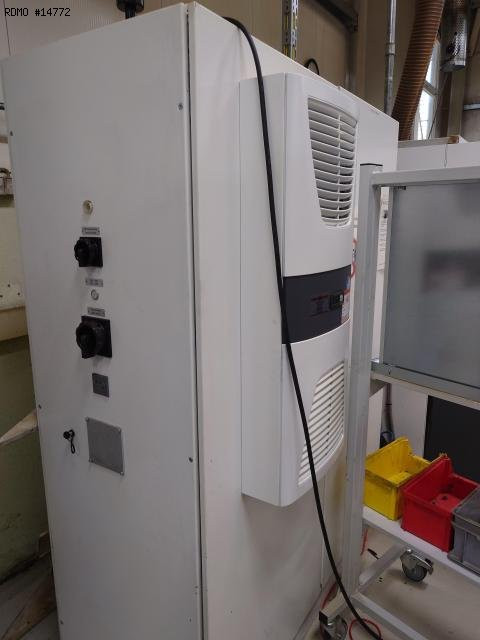

- Cooling unit for spindle cooling
- Robot loader
