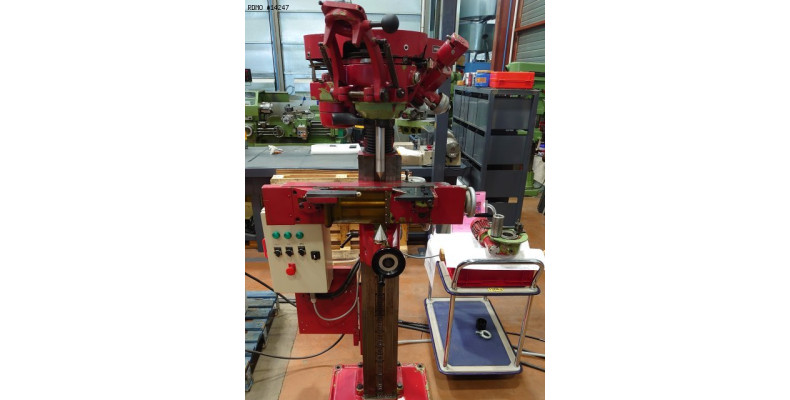

TECHNICA 5100

Grinding / sharpening / lapping / deburring / polishing Center grinder
14247
PDF datasheet to download:
Brand: TECHNICA
Model: 5100
Year:
Serial: 54276568
14247
TECHNICA 5100
PDF datasheet to download:
Brand: TECHNICA
Model: 5100
Year:
Serial: 54276568
Ask Price

Caracteristics & Equipment

Caracteristics
- max. workpiece diameter : 125 [mm]
- max. workpiece length : 1100 [mm]
- min. workpiece diameter : 8 [mm]
- min. workpiece width : 50 [mm]
- max. worpiece weight : 120 [kg]
- angle for centering drilling : 60 [°]
- mini/maxi cone diameter : 2/50 [mm]
- spindle speed Ø grinding wheel 15 [mm] : 45 000 [rpm]
- spindle speed Ø grinding wheel 27 [mm] : 22 500 [rpm]
- spindle speed Ø grinding wheel 48 [mm] : 13 000 [rpm]
- machine weight : 460 [kg]
- dimensions : 850 x 750 x 1 850 [mm]
Equipment
- planetary grinding device
- manual grinding wheel trueing unit
