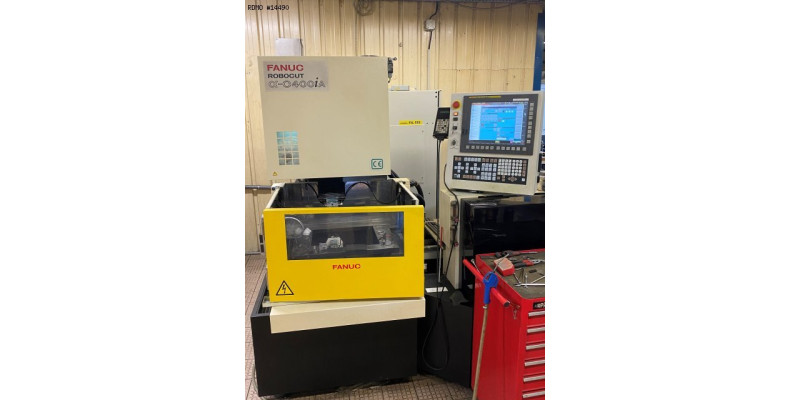

Machine
X, Y, Z travels: 370 x 270 x 255 mm
A axis: Positionable ± 5″, max. speed 1000 rpm
Max. draft angle: ± 30

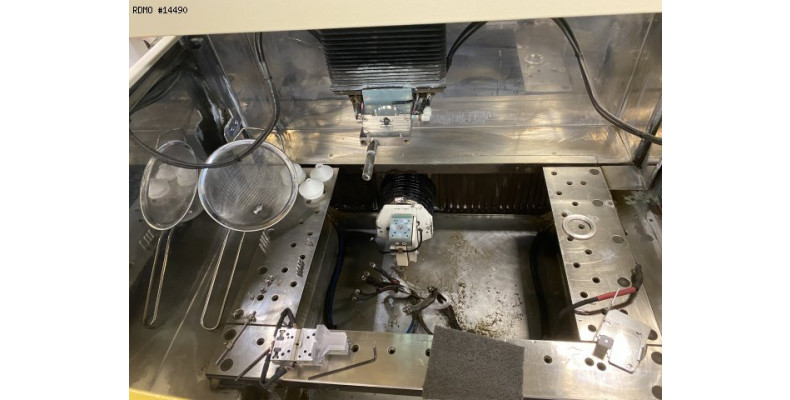

Max. workpiece dimensions (width x depth x height): 700 x 600 x 250 mm
Max. workpiece weight: 500 kg
Total weight of equipment without dielectric: 1800 kg

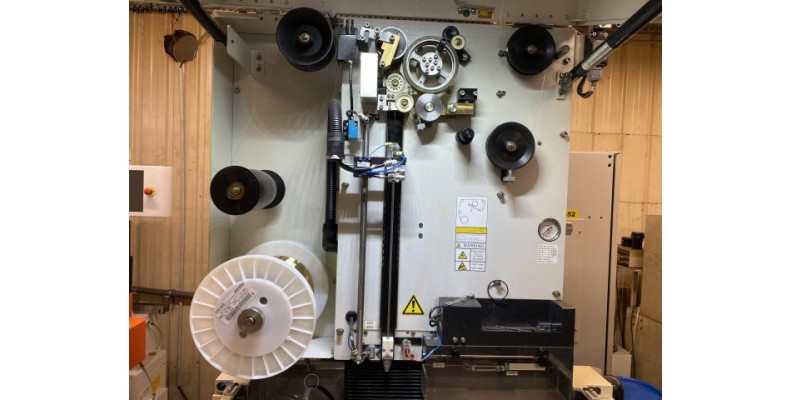

Wire circuit
Standard wire guides (diameter): 0.25 mm and 0.1 mm
Permissible coil types (JIS standards): P3, P5 and P10
Dielectric unit
Number of standard filters (paper cartridge): 2
Total volume of dielectric: 370 l
Generator
Input voltage: 110 V supplied with 380/400 V transformer
Total power consumption: 11 kVA
Operating hours: 15320
This machine tool is sold. We offer equivalent models at the bottom of page.
