AGIE CHARMILLES CUT 300Sp

Name: Wire erosion AGIE CHARMILLES CUT 300Sp
Brand: AGIE CHARMILLES
Availability: InStock

Edm machines Wire erosion

14833

PDF datasheet to download:

Brand: AGIE CHARMILLES

Model: CUT 300Sp

Year: 2015

Serial: 591.063.002.0255

14833

AGIE CHARMILLES CUT 300Sp

Edm machines Wire erosion

PDF datasheet to download:

Brand: AGIE CHARMILLES

Model: CUT 300Sp

Year: 2015

Serial: 591.063.002.0255

Ask Price

Caracteristics

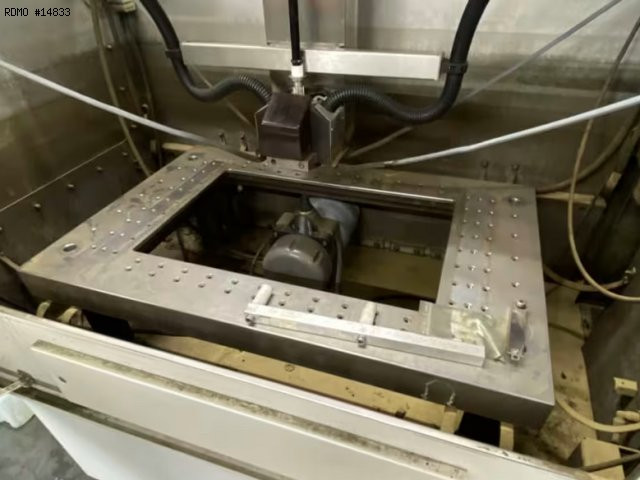

- Table dimensions : 900 x 600 [mm]
- Dielectric capacity : 1200 [l]
TRAVELS
- Travels on X/Y/Z axes : 550 x 350 x 400 [mm]
- Travels on U/V axes : 550 x 350 [mm]
- Rapid traverses rates (X/Y/Z) : 3 [m/min]
- Rapid traverses rates (U/V) : 3 [m/min]
- Max. taper : +/- 30 [°/mm]
PART
- Max. part dimensions : 1200 x 700 x 400 [mm]
- Max. part weight : 1500 [kg]
WIRE GUIDE
- Wire diameter : 0.15 - 0.33 [mm]
POWER SUPPLY
- Supply voltage : 400 [V]
- Total installed power : 12 [kVA]
WEIGHT & DIMENSIONS
- Machine floor space : 2600 x 2600 [mm]
- Machine height : 2340 [mm]
- Machine weight : 2850 [kg]

Equipment

- CNC : CHARMILLES
- Screen : LCD 15'' TFT
- Remote control

PDF datasheet to download:
